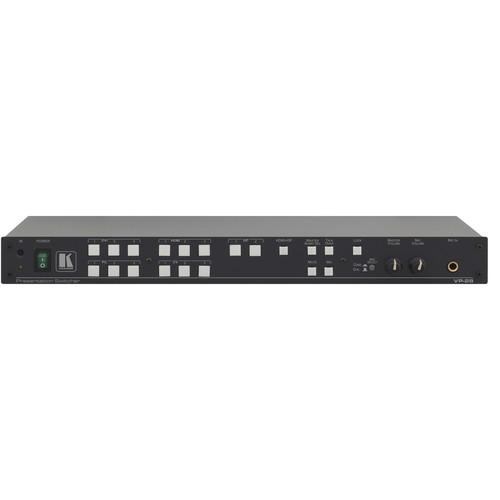

User Manual for Kramer VP-28 14-Input MultiFormat Presentation Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VP-28 14-Input MultiFormat Presentation Switcher
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VP-28 14-Input MultiFormat Presentation Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Electronics VP-28 14-Input Multi−Format Presentation Switcher with Stereo Audio is a high−performance multi−format presentation switcher for composite video, HDMI, DVI, DisplayPort, computer graphics video and stereo audio and microphone signals. The unit operates as a 3x1 composite video, 3x1 HDMI, 3x1 computer graphics video, 3x1 DVI−I, and 2x1 DisplayPort switcher, each with unbalanced stereo audio. - Maximum data rate 6.75 Gb/s (2.25 Gb/s per graphic channel) (HDMI & DVI)
- Audio Level Memory: Remembers and returns to the last audio level setting during switching
- Condenser or Dynamic Microphone: Button selectable
- Microphone and Audio Mixing: Input selectable master audio output
- Mic Talkover: Mutes master audio output when mic signal is sensed
- Level Controls: Master audio output, microphone input
- Flexible Control Options: Front panel, RS−232, Ethernet and IR (included)
- Front panel control lockout
- Worldwide Power Supply: 100 to 240 VAC
In the Box Kramer VP-28 14-Input MultiFormat Presentation Switcher Power Cord Rack Ears Ethernet Kramer Infrared Remote Control Transmitter Kramer ADC−DM/DF+GF DVI to DVI and VGA Breakout Cable Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-28 14-Input MultiFormat Presentation Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-28 Specs | Video Input | 3x composite video on RCA connectors
3x HDMI connectors
2x DisplayPort connectors
3x PC/DVI on DVI connectors | | Audio Input | 1x mic on an XLR connector
1x mic on a 6.3mm phone jack connector (3mV/10kW condenser/dynamic)
3x CV, 3x HDMI, 2x DP, 3x PC audio, 3x DVI, all unbalanced stereo audio on 3.5 mm mini jack connectors | | Video Output | 1x composite video on an RCA connector
1x HDMI connector
1x DisplayPort connector
1x PC/DVI on a DVI connector | | Audio Output | 1x CV, 1x HDMI, 1x DP, 1x PC audio, 1x DVI, all unbalanced stereo audio on a 3.5mm mini jack connectors; 1 master balanced stereo audio on a 5−pin terminal block | | Maximum Output Level | Video: CV: 1.7 Vpp, XGA: 2.3 Vpp
Audio: Master: 17 Vpp from mic, 12.4 Vpp from line in,
Local Outputs: 8.8Vpp from line inputs | | Bandwidth | Video: CV: 680 MHz, XGA: 290 MHz (-4dB 400 MHz) (-3 dB)
Audio: >25kHz (-3 dB)
Maximum Bandwidth: One or two lane (1.65 Gb/s per lane) | | Differential Gain | Video: CV: 2.5%, XGA: 0.1% | | Differential Phase | CV: 0.4°, XGA: 0.1° | | K-Factor | CV: <0.05%, XGA: <0.05% | | S/N Ratio | Video: CV: 74 dB, XGA: 71 dB @ 5 MHz
Audio: Master: 81dB from mic (@ 20 m Vpp input, 17 Vpp output diff, A weighting, XLR microphone), 90 to 95 dB from line in (A weighting)
Local Outputs: 110 dB (A weighting). | | Crosstalk | Video: CV: -54 dB, XGA: -56 dB (5 MHz) (@ 1 kHz)
Audio: Master: -70dB
Local Outputs: -80dB from line in. | | Control | Master: <-12 to 70 dB from mic, -79 to 15 dB from line in (level range) | | Coupling | Video: CV: DC, XGA: DC
Audio: AC. | | THD + Noise | Master: 0.4% from mic, 0.02% from line in (A weighting)
Local Outputs: 0.04% from line in | | Audio | Master: 0.03% from mic, 0.01% from line in
Local Outputs: 0.02%. | | Compliance With HDMI Standard | Supports HDCP | | Indicators | LEDs: IR | | Power Consumption | 90 to 264 VAC, 23 VA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | −40 to 158°F (−40 to 70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Rack Space | 1U rack unit | | Dimensions (WxD) | 19.00 x 7.35" (48.26 x 18.66 cm) | | Weight | 3.97 lb (1.8 kg) approximately |
