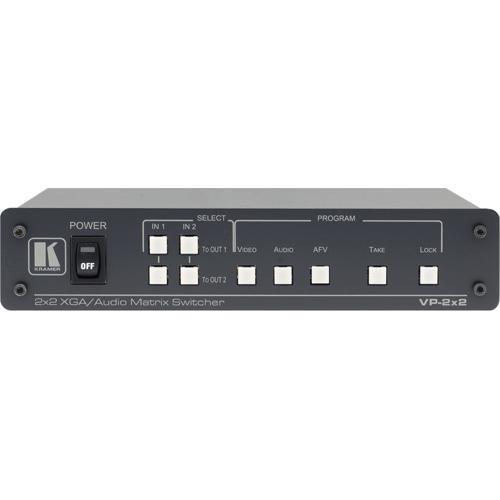

Product description The VP-2x2 2x2 Computer Graphics Video & Balanced Stereo Audio Matrix Switcher from Kramer offers (2) VGA inputs and outputs, as well as (2) balanced stereo audio inputs and outputs. Because it is a matrix switcher, any inputs can be routed to any outputs and vice versa. - This unit offers 2x2 matrix switching of VGA and balanced stereo audio signals
- Resolutions up to UXGA are supported
- This unit is HDTV-compatible
- A take button can be used to execute multiple switches at the same time
- It includes a front-panel control lockout
- The unit can be controlled via RS-232 or front-panel pushbuttons
- It offers audio breakaway switching
- Up to (2) of these devices can be mounted in 1U of rack space using the separately available RK-1 Adapter
In the Box Kramer VP-2x2 2x2 Computer Graphics Video & Balanced Stereo Audio Matrix Switcher Power Supply Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-2x2 2x2 Computer Graphics Video & Balanced Stereo Audio Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-2X2 Specs | Inputs | (2) VGA/UXGA on 15-pin HD (female) connectors
(2) balanced stereo audio on detachable terminal block connectors | | Outputs | (2) VGA/UXGA on 15-pin HD (female) connectors
(2) balanced stereo audio on detachable terminal block connectors | | Performance | Maximum Output Level:
Video: 1.7Vpp
Audio: 7.2Vpp
Bandwidth (-3dB):
Video: 400MHz
Audio: 100kHz
Differential Gain: 0.05%
Differential Phase: 0.05 degrees
K-Factor: 0.05%
Signal-to-Noise Ratio:
Video: 78.3dB
Audio: 95dB, unweighted
Crosstalk:
Video: -43dB
Audio: 77dB @ 1kHz
Coupling: DC
Audio THD + Noise: 0.049%
Audio 2nd Harmonic: 0.003% | | Controls | Front panel touch switches
RS-232 | | Power | 12VDC, 150mA | | Dimensions (HxWxD) | 1.7 x 8.7 x 7" (4.5 x 22 x 18cm) | | Weight | 2.4 lbs (1.1kg) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 13.6 x 8.4 x 2.9" |
