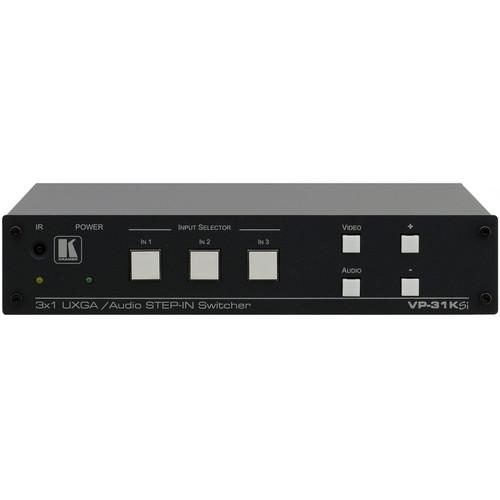

Product description The Kramer VP-31KSi 3 x 1 Computer Graphics Video & Stereo Audio Step-In Switcher is a high-performance analog step-in switcher for computer graphics video with resolutions up to WUXGA and unbalanced stereo audio signals. The unit can switch any 1 of 3 inputs to 1 computer graphics video, 1 unbalanced and 1 balanced stereo audio, and 1 twisted pair output. The VP-31KSi switcher works in conjunction with up to 3 VGA Remote Control Step-in Modules including SI-1VGA (for TBUS-10), SI-VGAT (under the table), and WSI-1VGA (for standard TBUSes). It is also compatible with HDTV Component video signals when used with a breakout cable such as Kramer C-GM/3RVF. - High Bandwidth: 440 MHz (-3 dB), CAT 5 (Rec Out) 150 MHz
- Kr-isp Advanced Sync Processing: Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform
- Remote Step-in Switching: Supports up to 3 Kramer Remote Step-In Panels (for example, SI-1VGA, WSI-1VGA, or SI-VGAT) for remote inputs and remote step-in control
- I-EDIDPro Kramer Intelligent EDID Processing: Intelligent EDID handling & processing algorithm ensures plug and play operation for analog systems
- Multiple Unit Cascade: Cascades up to 8 units to create a virtual switcher of up to 17 inputs
- Audio Switching Modes: Audio-Follows-Video (AFV) and audio breakaway switching
- Flexible Control Options: Front panel, remote step-in panels, RS-232 (K-Router Windows-based software is included), RS-485, Ethernet via a built-in web server, contact closure, & IR remote (included)
- Desktop Size: Compact size; 2 units can be rack mounted side-by-side in a 1U rack space with an optional RK-1 adapter
- Applications: Display systems requiring simple input selection, remote monitoring of computer activity in schools and businesses, rental / staging applications, multimedia and presentation source selection
In the Box Kramer VP-31KSi 3 x 1 Computer Graphics Video & Stereo Audio Step-In Switcher Power Cord RC-IR3 Infrared Remote Control Transmitter (With Batteries & User Manual) Power Adapter 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-31KSi 3 x 1 Computer Graphics Video & Stereo Audio Step-In Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-31KSI Specs | Inputs | 3x XGA on 15-pin HD connectors
3x unbalanced stereo audio on 3.5 mm mini jacks | | Outputs | 1x XGA on a 15-pin HD connector
1x twisted pair on an RJ-45 connector
1x unbalanced stereo audio on a 3.5 mm mini jack
1x balanced audio stereo on a 5-pin detachable terminal block | | Maximum Output Level | Video: 2.2 Vpp; Audio: Stereo unbalanced 7.9 Vpp, stereo balanced 15.8 Vpp differential (17 dB) | | Bandwidth | Video: Out 440 MHz maximum CAT 5 (Rec Out) 150 MHz; Audio: Stereo unbalanced 20 kHz, stereo balanced 20 kHz | | Video Resolution | VGA to WUXGA | | Differential Gain | XGA: 0.06% | | Differential Phase | UXGA: 0.05° | | K-Factor | UXGA: <0.05% | | S/N Ratio | Video: UXGA 69.5 dB @ 5 MHz, CAT 5 69.1 dB; Audio: Stereo unbalanced 80.8 dB @ 1 KHz, stereo balanced 80.8 dB @ 1 kHz, CAT 5 (Rec Out) 80.1 dB | | Crosstalk | All Hostile: Video: UXGA -63.2 dB @ 5 MHz; Audio: Local stereo unbalanced -117.7 dB @ 1 KHz, local stereo balanced -108.8 dB @ 1 kHz | | Volume Control | Audio: Stereo unbalanced -116.3 to 21.1 dB; stereo balanced -109.7 to 27.1 dB | | Coupling | Video: UXGA-DC, TP Out-DC; Audio: Balanced / unbalanced-In / Out AC | | Audio | THD + Noise: Stereo unbalanced 0.026%, stereo balanced 0.01%.
2nd Harmonic: Stereo unbalanced 0.002%, stereo balanced 0.003% | | Operating Temperature | 32 to 13°F (0 to 55°C) | | Storage Temperature | -49 to 162°F (-45 to 72°C) | | Humidity | 10 to 90%, RHL non-condensing | | Power Consumption | 12 VDC 260 mA. When connected to TP-122/N or TP124, 750 mA | | Dimensions (W x D x H) | 6.7 x 6.57 x 1.3" (16.9 x 16.7 x 3.2 cm) | | Weight | Approximately 2.43 lb (1.1 kg) |
