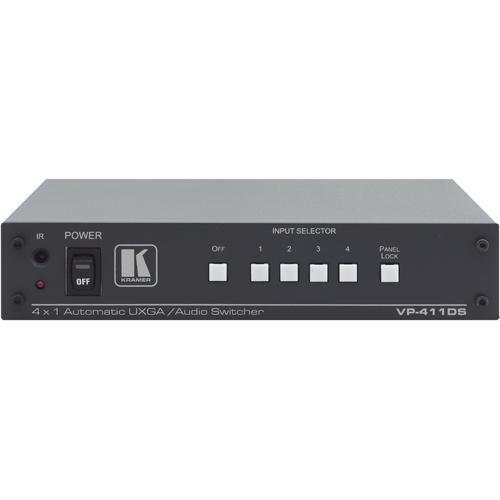

User Manual for Kramer VP-411DS 4x1 Computer Graphics Video & Stereo Audio Standby Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VP-411DS 4x1 Computer Graphics Video
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VP-411DS 4x1 Computer Graphics Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VP-411DS 4x1 Computer Graphics Video & Stereo Audio Standby Switcher from Kramer allows you to route any of (4) VGA and unbalanced stereo audio inputs to (1) output for each signal type. When this unit is configured as a standby switcher, priority can be set for each of the inputs. - This unit offers 4x1 switching of VGA and unbalanced stereo audio signals
- It can be configured as a standby switcher with priority settings configured via dip switches for each of the inputs
- It offers bandwidth of 300MHz (-3dB)
- This device is HDTV-compatible
- It includes (1) looping input
- Primary input is selectable
- Kramer's proprietary KR-ISP Advanced Sync Processing can be enabled or disabled to ensure compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform
- Multiple control options are available: front-panel buttons, RS-232, contact closure, IR remote
- It offers output disconnect
- Front-panel lockout is a standard feature
- Up to (2) of these units can be mounted side by side in 1U of rack space using the separately available RK-1 Rack Adapter
In the Box Kramer VP-411DS 4x1 Computer Graphics Video & Stereo Audio Standby Switcher Power Supply IR Remote Control Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-411DS 4x1 Computer Graphics Video & Stereo Audio Standby Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-411DS Specs | Inputs | (4) UXGA on 15-pin HD connectors
(4) unbalanced stereo audio on 3.5mm mini audio connectors | | Outputs | (1) UXGA on a 15-pin HD connector
(1) UXGA on a 15-pin HD connector (IN 1 LOOP)
(1) unbalanced stereo audio on 3.5mm mini audio connector
(1) unbalanced stereo audio on 3.5mm mini audio connector (IN 1 LOOP) | | Performance | Maximum Output Level:
Video: 1.8Vpp
Audio: 7.2Vpp
Bandwidth (-3dB):
Video: 300MHz
Audio: >40kHz
Differential Gain: 0.03%
Differential Phase: 0.06 degrees
K-Factor: <0.05%
Signal-to-Noise Ratio:
Video: 73dB @ 5MHz
Audio: 93dB
Crosstalk (all hostile):
Video: -50dB @ 5MHz
Audio: -72dB @ 1KHz | | Power | 12V, 230mA | | Dimensions (HxWxD) | 1.7 x 8.46 x 6.4" (4.36 x 21.5 x 16.25cm) | | Weight | 2.43 lbs (1.1kg) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 13.5 x 8.4 x 2.9" |
