Product description The Kramer VP-424 HDMI to HDMI ProScale Digital Scaler is a high-performance, digital scaler for HDMI signals. It up or down scales the input to a selectable resolution on an HDMI connector. It is used in projection systems in conference rooms, boardrooms, hotels, and churches and for home theater up-scaling. - A maximum resolution of up to WUXGA and 1080p
- A built-in ProcAmp for convenient adjustment of signal, color, sharpness, brightness, contrast, and so on

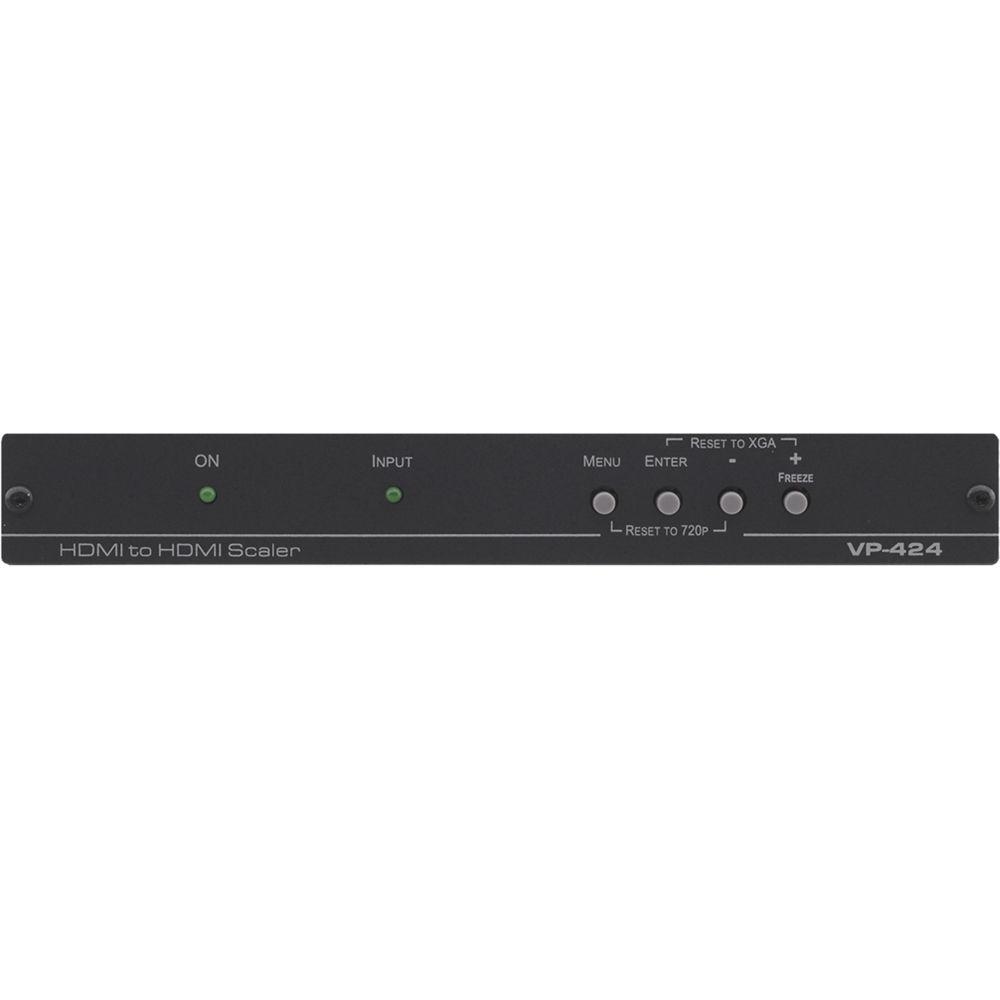

- An OSD (On-Screen Display) for easy setup and adjustment, accessible via the front-panel buttons
- Digital noise reduction - On / Off
- A non-volatile memory that retains the last settings used
- Multiple aspect ratio selections
- A USB port for firmware upgrade
- An external 5VDC power source, making it suitable for field operation

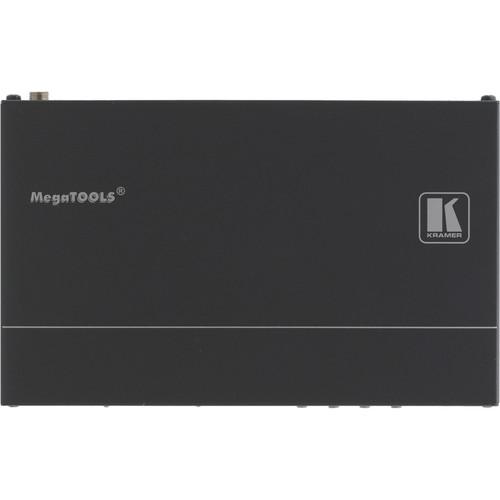

- Housing in a compact MegaTOOLS enclosure, that enables 2 units to be rack mounted side-by-side in a 1U rack space with the RK-T2B Universal Rack Adapter (sold separately)
In the Box Kramer VP-424 HDMI to HDMI ProScale Digital Scaler Power Adapter Mounting Brackets 4 x Rubber Feet Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-424 HDMI to HDMI ProScale Digital Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-424 Specs | Input | 1 x HDMI connector | | Input Resolutions | 480i / 576i (NTSC / PAL), SXGA @ (60), 480p / 576p, UXGA @ 60, 720p @ (60 / 50), WXGA @ 60 (1280 x 800), 1080i @ (60 / 50), WXGA @ 60 (1366 x 768), 1080p @ (60 / 50), WSXGA @ 60 (1680 x 1050), 1080p @ (24 / 25 / 30), WUXGA @ 60 (1920 x 1200 RB), VGA @ (60 / 72 / 75), WXGA+ @ 60 (1440 x 900), SVGA @ (56 / 60 / 72 / 75), SXGA+ @ 60 (1400 x 1050), XGA @ (60 / 70 / 75) | | Output | 1 x HDMI connector | | Output Resolutions | 1080p, 1080i, 720p, 576p, 480p, 1920 x 1080 (RB), 1920 x 1200 (RB), 1600 x 1200, 1680 x 1050, 1400 x 1050, 1280 x 1024, 1440 x 900, 1360 x 768, 1280 x 800, 1024 x 768, 800 x 600, 640 x 480 and Native | | Output Refresh Rate | 60 Hz for computer graphics resolutions, 50 / 60 Hz for HDTV resolutions | | Processing Delay | 20 ms | | Control | Front panel buttons, ON and component output LEDs | | Power Consumption | 5.2 VDC, 630 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions (W x D x H) | 7.50 x 5.30 x 0.98" (19.05 x 13.46 x 2.49 cm) | | Weight | 1.45 lb (0.66 kg) approximately | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 13.5 x 8.4 x 2.7" |
