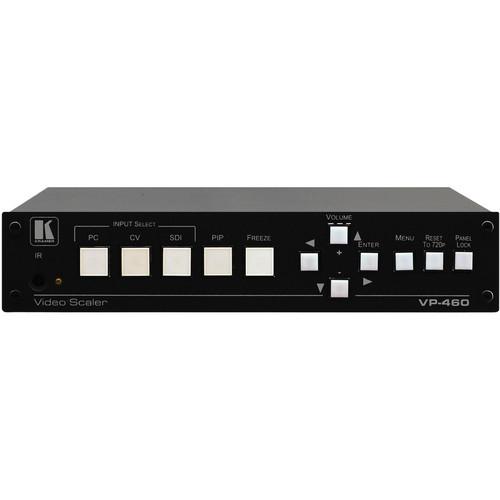

Product description The Kramer Electronics VP-460 3-Input Analog & 3G HD-SDI ProScale Presentation Switcher/ Scaler is a high quality presentation switcher and scaler with PIP for computer graphics, composite video, and 3G HD−SDI signals. It scales the video, embeds the audio and outputs the signal to the HDMI output, as well as to the SDI output together with a digital audio output. - K-IIT XL Picture-In-Picture Image Insertion Technology: Ultra stable picture−in−picture, picture−and−picture, and split screen capability. Any video source can be inserted into or positioned next to an SDI video source or vice versa with window positioning and sizing controls
- K-Storm Scaling Technology: Kramer's high performance scaling technology for converting the incoming video signal with a minimum of motion artifacts. Up− and down-scaling of computer graphics video signals is possible
- Ultra-fast FTB (Fade-Thru-Black) Switching: Video switching transitions are clean and ultra fast. The video fades to black and the new input fades from black for smooth, glitch free switching. The output signal provides constant sync so the display never glitches
- Multi-Standard Operation: SDI (SMPTE 259M), HD−SDI (SMPTE 292M) and 3G HD−SDI (SMPTE 424M)
- Video Inputs: 1 computer graphics on a 15−pin HD connector, 1 composite video on an RCA connector, 1 SD/HD/3G HD−SDI with loop on BNC connectors
- Scaled Outputs: 1 HDMI, 1 SD/HD/3G HD−SDI on a BNC connector
- 40 Output Resolutions: Up to WUXGA, 1080p, and 2K
- HDMI deep color support for inputs and outputs
- Luma keying via PIP window
- Built-in ProcAmp: Color, sharpness, contrast, brightness, and gamma are set individually for each input
- 3D Comb Filtering provides the best quality color separation for composite video inputs
- Built-in time base corrector stabilizes unstable video sources
- Powerful noise reduction filters temporal, block, mosquito and combing
- Picture zooming from 100% to 1600% on both main and PIP picture
- De-Interlacing: 3:2 and 2:2 pull down 24sf handling
- Multiple Aspect Ratio Selections: Follow input; follow output, best fit, letterbox, and overscan
- Dual Window Display: Preset picture−in−picture, picture−and−picture and split screens, as well as customized window layouts
- Audio Inputs: 1 computer graphics on a 3.5mm mini−jack connector, 1 CV on RCA connectors; embedded audio (user selectable) on the SDI input
- Audio Outputs: 1 S/PDIF on an RCA connector, embedded audio on the HDMI and SDI outputs
- Power Save Modes: Options for efficient energy use
- Advanced EDID management for each input and each output
- Non-volatile memory saves final settings
- Firmware upgrades via RS−232
- Flexible control options front panel buttons, OSD (Onscreen Display) via front panel buttons or IR remote (remote control included), Control Application software for use via RS−232
- Compact Desktop Size: 2 units can be rack mounted side−by−side in a 1U rack space with an RK−1 adapter (sold separately)
In the Box Kramer VP-460 3-Input Analog & 3G HD-SDI ProScale Presentation Switcher/ Scaler Power Cord IR Remote Control Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-460 3-Input Analog & 3G HD-SDI ProScale Presentation Switcher Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-460 Specs | Inputs | 1x computer graphics on a 15−pin HD connector
1x composite video, 1 Vpp @ 75 Ω on an RCA connector
1x SD/HD/3G HD−SDI on a BNC connector
1x unbalanced stereo audio on a 3.5mm mini jack connector
1x unbalanced stereo audio on 2x RCA connectors | | Outputs | 1x SD/HD/3G HD−SDI on a BNC connector
1x HDMI (deep color) connector, 1x S/PDIF digital audio on an RCA connector | | Compliance With HDMI Standard | Supports HDMI deep color | | Output Resolutions | 640 x 480 @ 60, 640 x 480 @ 75, 800 x 600@ 50, 800 x 600 @ 60, 800 x 600 @ 75, 1024 x 768 @ 50, 1024 x 768@ 60, 1024 x 768 @ 75, 1280 x 768 @ 50, 1280 x 768 @ 60, 1280 x 800 @ 60, 1280 x 1024 @ 50, 1280 x 1024 @ 60, 1280 x 1024 @ 75, 1360 x 768@ 60,1366 x 768@ 50, 1366 x 768 @ 60, 1400 x 1050 @ 50, 1400 x 1050 @ 60, 1600 x 900 @ 60, 1600 x 1200 @ 50, 1600 x 1200 @ 60, 1680 x 1050 @ 60, 1920 x 1200 @ 60, 480i60, 480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2K50, 2K60 | | Controls | Front panel buttons, OSD, IR remote control, RS−232 on a 9−pin D−sub connector | | Power Consumption | 5 VDC, 2.90 A | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | −40 to 158°F (−40 to 70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Dimensions (W x D x H) | 8.5 x 6.4 x 1.7" (21.5 x 16.3 x 4.4 cm) | | Weight | 1.98 lb (0.9 kg) approximately | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 13.9 x 8.5 x 2.7" |
