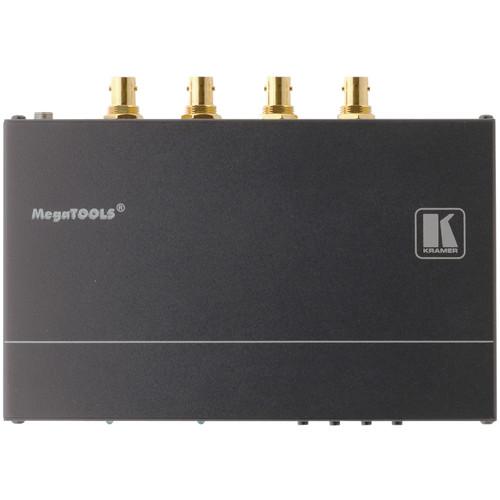

User Manual for Kramer VP-470 3G HD-SDI ProScale Digital Scaler Click to enlarge the picture
Contents of the user manual for the Kramer VP-470 3G HD-SDI ProScale Digital
- Product category: Signal Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Signal Converters
 |
User manual for the Kramer VP-470 3G HD-SDI ProScale Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VP-470 3G HD-SDI ProScale Digital Scaler from Kramer is a high-performance digital scaler for 3G HD-SDI signals. It up- or down-scales the incoming SDI signal to resolutions up to 1080p and routes it to two identical BNC SDI outputs. The VP-470 is useful for projection systems in conference rooms, boardrooms, hotels, and home theaters. - Multi-standard operation: SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
- Looping input reclocked and equalized
- Full, panscan, letterbox, underscan and overscan settings selectable output size and aspect ratio
- Built-in ProcAmp: Color hue, sharpness, contrast and brightness
- Non-volatile memory saves final settings
- USB port for firmware upgrades

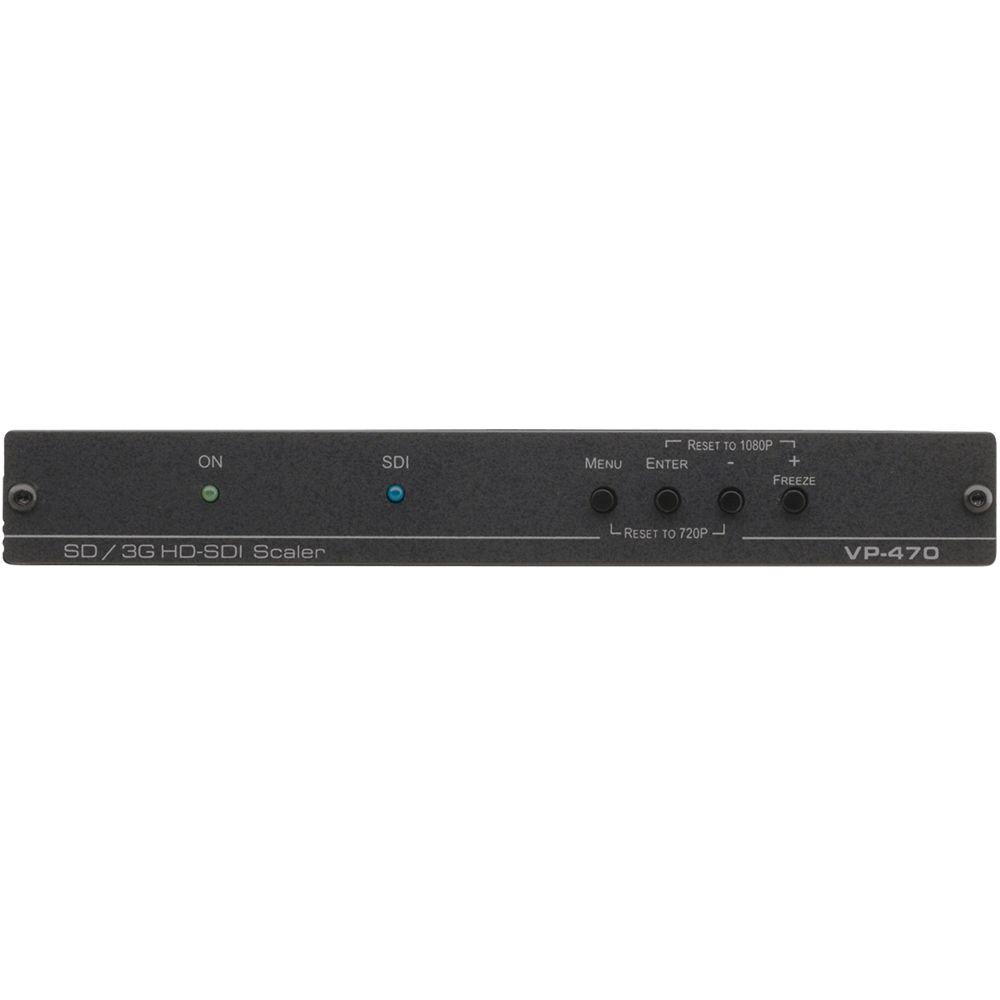

- Front panel buttons with OSD (on screen display)
In the Box Kramer VP-470 3G HD-SDI ProScale Digital Scaler Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-470 3G HD-SDI ProScale Digital Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

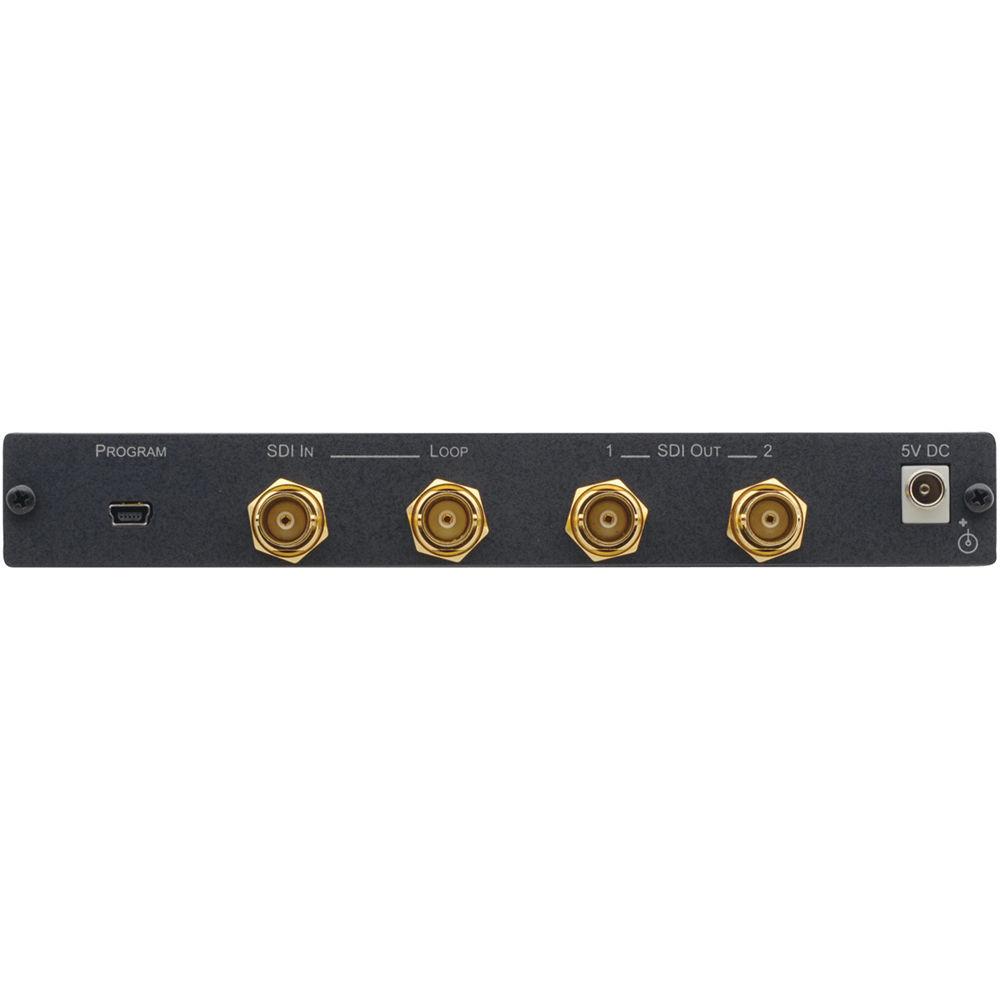

Technical parametersKramer VP-470 Specs | Input | 1 x BNC, SD/HD/3G HD-SDI with reclocked and equalized loop | | Outputs | 2 x BNC, SD/HD/3G HD-SDI | | Input Resolutions | SDTV: 480i @ 59.94 Hz, 576i @ 50 Hz
HDTV: 720p @ 50/59.94/60 Hz, 1080i @ 50/59.94/60 Hz, 1080p @ 23.98/24/25/29.97/30 Hz, 1080sF @ 23.98/24/25/29.97/30 Hz
3G: 1080p @ 50/59.94/60 1080sF @ 23.98/24 inputs don't support 480i/576i output
For 1080sF25/29.97/30 inputs, the OSD info shows 1080i50/59.94/60 | | Output Resolutions | SDTV: 480i @ 59 Hz, 576i @50 Hz
HDTV: 720p @ 50/59.94/60 Hz, 1080i @ 50/59.94/60 Hz, 1080p @ 23.98/24/25/29.97/30 Hz
3G: 1080p @ 50/59.94/60 Hz | | Output Settings | Full, panscan, letterbox, underscan, overscan | | Processing Delay | 30 ms | | Controls | Menu
OSD
Reset to 1080p or 720p button
Freeze button | | Power Consumption | 5 VDC, 440 mA | | Dimensions | 7.4 x 4.5 x 1.0" (18.8 x 11.4 x 2.4 cm) | | Weight | Approx. 1.7 lb (0.75 kg) |
