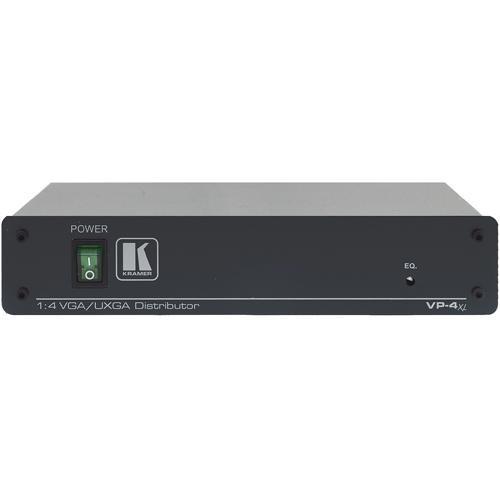

User Manual for Kramer VP-4xl 1:4 Computer Graphics Video Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer VP-4xl 1:4 Computer Graphics Video
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
|
User manual for the Kramer VP-4xl 1:4 Computer Graphics Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VP-4xl 1:4 Computer Graphics Video Distribution Amplifier from Kramer accepts (1) computer graphics video signal, provides correct buffering and isolation, then distributes the signal to (4) identical outputs. It supports resolutions ranging from VGA to UXGA and higher. The capacity of this solution can be scaled by cascading several units. It is well suited for use with multiple-projector or -monitor setups, as well as any other large professional distribution system. - This unit can be used to distribute computer graphics video signals
- It offers a bandwidth of 375MHz (-3dB)
- This unit is HDTV-compatible
- EQ (peaking) and ID bit control are standard features
- Up to (2) of these units can be mounted side by side in 1U of rack space using the separately available RK-1 Rack Adapter
In the Box Kramer VP-4xl 1:4 Computer Graphics Video Distribution Amplifier Power Cable Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-4xl 1:4 Computer Graphics Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-4XL Specs | Inputs | (1) VGA/UXGA input on a 15-pin HD (female) connector | | Outputs | (4) VGA/UXGA input on a 15-pin HD (female) connectors | | Performance | Maximum Output Level: 1.9Vpp
Bandwidth (-3dB): 375MHz
Differential Gain: 0.12%.
Differential Phase: 0.28 degrees
K-Factor: <0.05%
Signal-to-Noise Ratio: 73.7dB
Controls: EQ: 0 to 6.6dB @ 50MHz | | Power | Coupling: DC
Power Source: 100 to 240VAC, 50/60Hz, 4.3VA | | Dimensions (HxWxD) | 1.7 x 8.7 x 7" (4.5 x 22 x 18cm)
1U rack height, half-rack width | | Weight | 2.64 lbs (1.2kg) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 13.5 x 8.8 x 3.0" |
