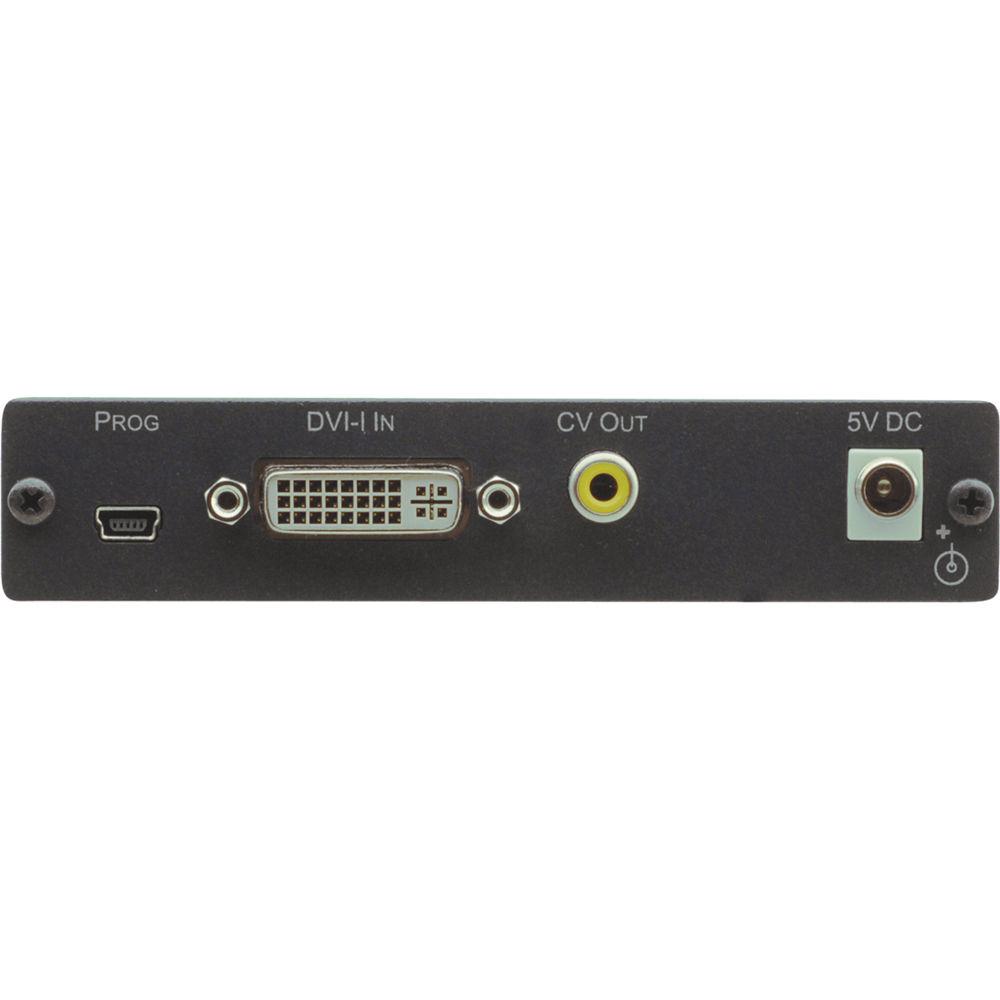

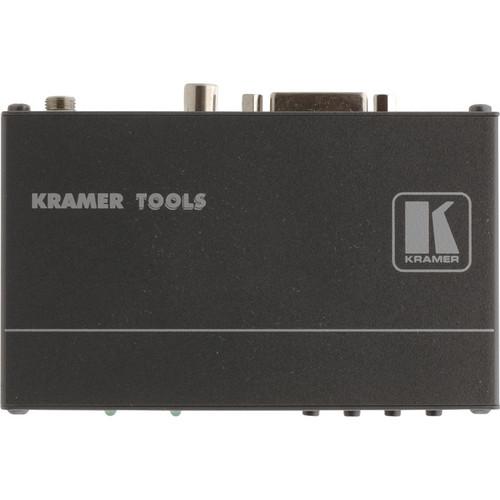

User Manual for Kramer VP-506 DVI & Computer Graphics Video Scan Converter Click to enlarge the picture
Contents of the user manual for the Kramer VP-506 DVI & Computer Graphics
- Product category: Signal Converters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Signal Converters
 |
User manual for the Kramer VP-506 DVI & Computer Graphics contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer VP-506 DVI & Computer Graphics Video Scan Converter is a high-quality scan converter for down-scaling DVI, computer graphics (VGA), and component video (YPbPr) to PAL or NTSC video. It supports VGA up to UXGA, as well as component resolutions up to 1080p. This converter is well-suited for multimedia, board rooms, video conferencing, and any application where high-quality conversion of DVI data signals to video signals is required. Video Support - Maximum resolution UXGA & 1080p
- High-quality composite video
- Selectable PAL or NTSC video standards
Memory Recall - Memory Locations: Saves and recalls up to 4 setups, including picture, input, output, zoom, and advanced feature setups
Functions - Built-in ProcAmp features color, sharpness, contrast, and brightness
- Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the RK−3T Rack Adapter (sold separately)

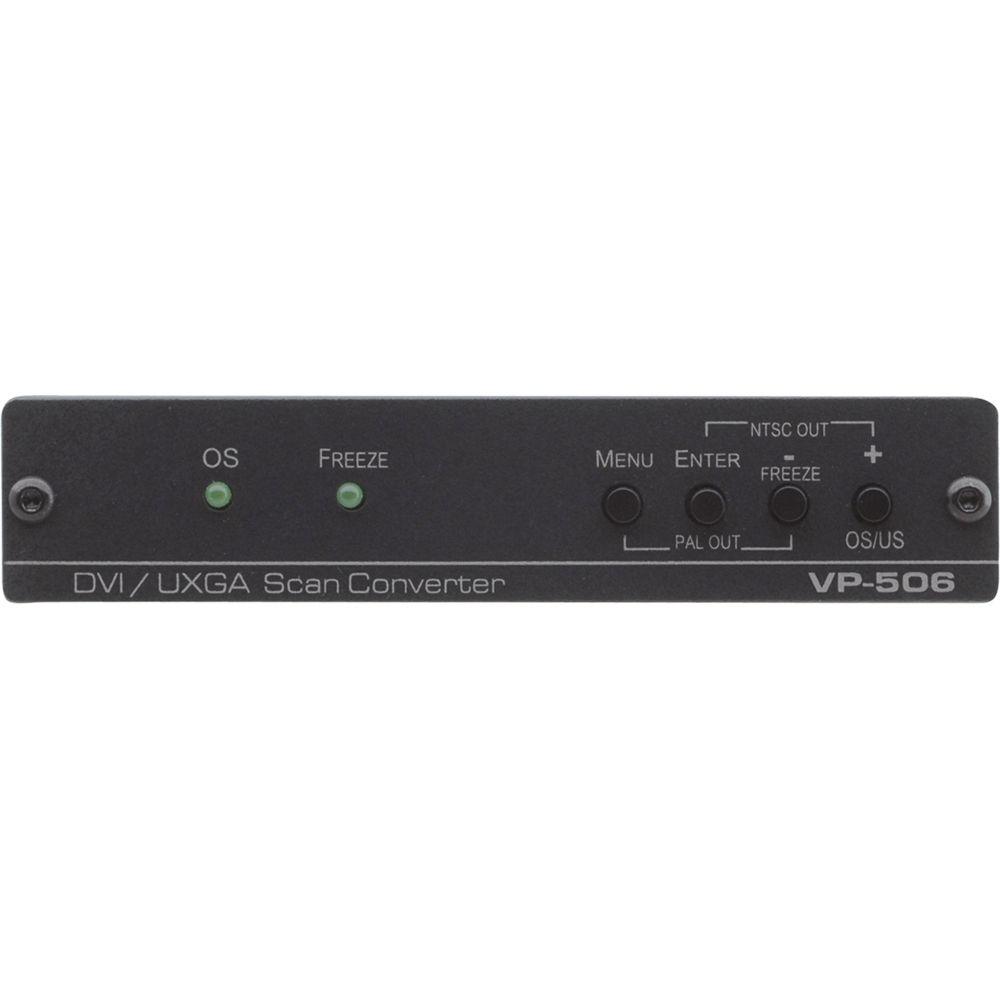

- User-friendly front panel buttons and OSD (on screen display) for easy control of ProcAmp functions, flicker-reduction, image optimization, one-touch freezing, overscanning and underscanning
Power In the Box Kramer VP-506 DVI & Computer Graphics Video Scan Converter 5VDC Power Supply 4 x Rubber Feet Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-506 DVI & Computer Graphics Video Scan Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-506 Specs | Input | 1 x DVI−I (DVI−D, VGA, YPbPr) on a 24−pin Molex connector | | Output | 1 x composite video, 1 Vpp / 75 Ω on an RCA connector | | Input Resolutions | Up to WUXGA / 1080p | | Control | Front Panel and OSD: ProcAmp video controls, freeze, underscan / overscan, 8 color bars | | Power Consumption | 5 VDC, 540 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions (W x D x H) | 4.70 x 2.95 x 0.98" (11.94 x 7.49 x 2.49 cm) | | Weight | 0.67 lb (0.30 kg) approximately | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.2 x 4.9 x 3.5" |
