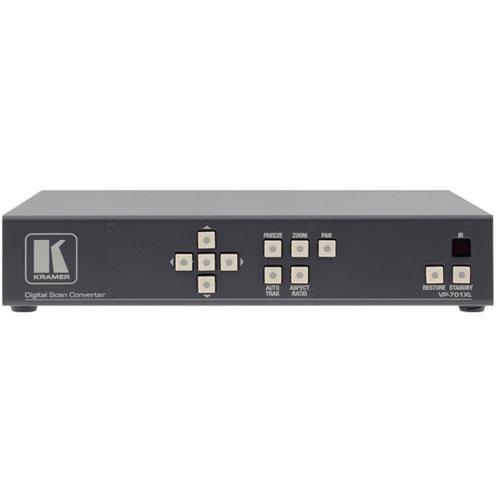

Product description The VP-701xl VGA/SVGA/UXGA Scan Converter from Comprehensive/Kramer is a device that will convert a computer-graphics video signal up to 2048 x 2048 or an HDTV signal to (2) composite and (2) S-video (Y/C) signals simultaneously. Moreover, it will output either PAL or NTSC video formats.
This unit includes a proprietary auto-setup technology called AutoTrak, which allows you to automatically size, shift, and center any input image with the push of one button. Other features include a looping input, flicker reduction, front-panel lockout, multiple aspect-ratio settings, and pan & zoom controls. The unit's small footprint makes it equally well suited for standalone or rack installations. - Computer Graphics & HDTV Scan Converter
- This unit will scale a computer-graphics video signal or an HDTV signal to (2) composite and (2) S-video (Y/C) signals simultaneously.
- Signal Settings
- Multiple signal settings give you more control over the quality of video output.
- Automatic Setup
- A proprietary feature will automatically size, shift, and center the input image with the touch of a button.
- Small Footprint
- This unit's small size makes it easy to install on a desktop or in a rack.
In the Box Kramer VP-701xl VGA/SVGA/UXGA Scan Converter Scaler Power Supply IR remote control Limited 7-Year Warranty User Manual PDF 1.1mbxfdedcvrdeaqawwcaz Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-701xl VGA SVGA UXGA Scan Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-701XL Specs | Construction | Metal | | Finish | Black | | Inputs | (1) analog RGB/YPbPr on HD15 connectors into 75Ω,
supporting RGBHV, RGsB, YPbPr, auto-terminating into 75Ω
Digital sync (in RGBHV mode): TTL Level, 10K termination, positive or negative
Analog sync (in RGsB, YPbPr, YUV modes): 0.3V negative
RGB Level Range: 0.5-2.0 Vpp
Scan Rate Detection: automatic
PC Resolutions: any up to 2048x2048
HDTV Resolutions: any up to 1080p
Max horizontal scan rate: 150kHz | | Outputs | (2) Composite Video 1Vpp on BNC connectors
(2) S-video (YC) 1Vpp on 4-pin mini-DIN connectors
CV/YC Video encoder: 8/10-bit Digital Output impedance 75Ω
Television standards supported: NTSC and PAL
RGBHV loop | | Controls | Front-panel interface
IR remote control | | Power | 12VDC @1A maximum | | Dimensions (HxWxD) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 4.7 lb | | Box Dimensions (LxWxH) | 13.3 x 12.8 x 3.7" |
