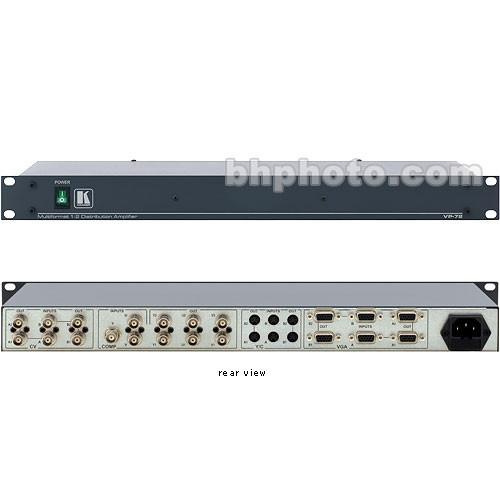

User Manual for Kramer VP-72 Multi-Format 1:2 Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer VP-72 Multi-Format 1:2 Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
|
User manual for the Kramer VP-72 Multi-Format 1:2 Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VP-72 Multi-Format 1:2 Distribution Amplifier from Kramer is a multi-format distribution amplifier with (7) inputs. It is designed for use with Composite video, S-Video, Component video (HDTV), and computer graphics video signals ranging from VGA to UXGA and higher. This product was designed to complement Kramer's ProScale Digital Scaler/Switcher Line. It includes (7) 1:2 distribution amplifiers in one package: (2) Composite, (2) S-Video (Y/C), (1) Component, and (2) computer graphics video.
This unit is ideally suited for use in presentation applications that require a preview option, video & graphics studios that need multi-format signal distributions, or stage, PA and educational applications. It offers a high-bandwidth capacity: Composite: 500MHz (- 3dB), S-Video (Y): 520MHz (- 3dB), YUV (Y): 470MHz (- 3dB), & VGA (R): 485MHz (- 3dB). It also features grouped level (trim) controls, EQ (peaking) controls, and ID bit control. It has a 19" width and 1U height, making it ideal for rack placement. - Multi-Format Distribution
- This amplifier includes (7) 1:2 distribution amplifiers in one package: (2) Composite, (2) S-Video (Y/C), (1) Component, and (2) computer graphics video.
- High-Bandwidth Capacity
- This unit offers high-bandwidth capacity: Composite: 500MHz (- 3dB), S-Video (Y): 520MHz (- 3dB), YUV (Y): 470MHz (- 3dB), & VGA (R): 485MHz (- 3dB).
- Controls
- This amplifier features grouped level (trim) controls, EQ (peaking) controls, and ID bit control.
- Rack Friendly
- This model has a 19" width and 1U height, making it ideal for rack placement.
In the Box Kramer VP-72 Multi-Format 1:2 Distribution Amplifier Amplifier Power Cord Seven-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-72 Multi-Format 1:2 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-72 Specs | Input | 2 x CV on BNC connectors
2 x YC on 4p connectors
1 x YUV on BNC connectors
2 x VGA/UXGA on HD15F connectors | | Output | 4 x CV on BNC connectors
4 x YC on 4p connectors
2 x YUV on BNC connectors
4 x VGA/UXGA on HD15F connectors | | Maximum Output Level | 2.4Vpp/75Ω (CV); 2.5Vpp/75Ω ("Y" channel ; YC); 2.3Vpp/75Ω ("Y" channel, YUV);.2.5Vpp/75Ω ("R", VGA) @100% white field | | Bandwidth | 500 MHz (CV); 520 MHz ("Y" channel, YC); 470 MHz ("Y" channel, YUV); 485 MHz ("R", VGA) | | Differential Gain | 0.04% (worst case) | | Differential Phase | 0.02 deg. (worst case) | | K-Factor | 0.05% (worst case) | | Signal-to-Noise Ratio | 75dB (worst case) | | Crosstalk | -61dB (worst case) | | Controls | Gain and EQ. controls, bottom accessible trimmers, all video sections;. ID bit control switches on graphics inputs | | Coupling | DC | | Power Source | Universal 100-240VAC, 3.5 VA | | Dimensions (WxDxH) | 19 x 7 x 1-3/4"
1U rack height | | Weight | 5.7 lbs (2.6kg) | | | | Package Weight | 7.75 lb | | Box Dimensions (LxWxH) | 22.0 x 11.0 x 4.5" |
