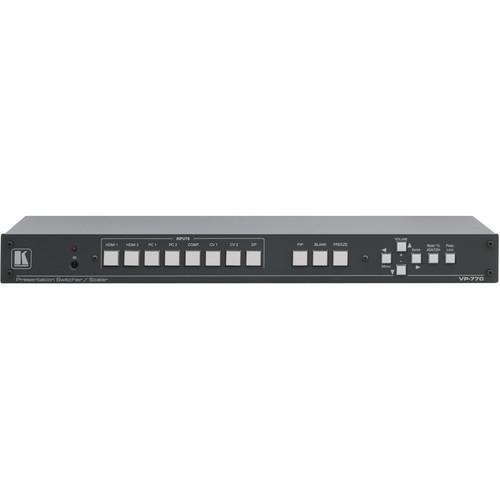

User Manual for Kramer VP-770 8-Input Presentation Switcher Switcher with Speaker Output Click to enlarge the picture
Contents of the user manual for the Kramer VP-770 8-Input Presentation Switcher Switcher
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VP-770 8-Input Presentation Switcher Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer VP-770 is a 1RU form-factor, 8-input presentation switcher and scaler that is designed to allow you to integrate a variety of different audio and video sources into your A/V system. It features two HDMI, two VGA, a DisplayPort, a component, and two composite video inputs along with discreet audio inputs for each video source as well as a mic input. It will scale as well as convert the frame rates of the incoming video sources to conform to a common standard for output to up to four displays. It features two HDMI outputs, a VGA output, and a DGKat Ethernet connector allowing you to send an HDMI signal over an Ethernet cable to a compatible Kramer receiver balun for applications where were long cable runs are required. In addition, it features digital S/PDIF and analogue audio out as well as an amplified, 10W stereo speaker connector.
With HDPC compliance and EDID management, the VP-770 will accept video in most HDTV and resolutions and frame rates as well as NTSC and PAL standard definition analogue video. Devices that can be connected to the a switcher/scaler include computers, DVD and Blu-ray players, document cameras, media players, camcorders, video production switchers, or even legacy analogue devices such as VCRs. The HDMI and VGA outputs can be used to drive display devices including multimedia projectors, TVs, commercial displays, and computer monitors. - EDID Management
- The EDID (Extended Device ID) data for a selected master input can mapped to one of the outputs to help ensure proper "handshake"
- HDCP Compliant
- HDMI sources with HDCP (High Definition Content Protection) encryption will only pass to the HDMI output on the VP-770
- Fade-Thru-Black (FTB) Switching
- When switching, the image fades to black giving the new source a chance to establish sync, the new image then fades in for a seamless transition
- Multiple Simultaneous Video Outputs
- Both VGA ports, the HDMI port, and the DGKat HDMI balun port are active simultaneously, allowing you to connect up to four display devices without using a distribution amplifier or splitter
- Dual Window Display
- Presets for picture-in-picture (PIP), picture-and-picture, and split screen presentation modes, as well as customized window layouts. Both the main and PIP window can be magnified up to 1600%
- Luma Keying via PIP Window
- Allows you key out a portion of the main image based on luminance value allowing you to insert backgrounds and overlays
- ProcAmp and Image Filters
-
- ProcAmp allows you to individually adjust color, sharpness, contrast, brightness, and gamma for each input
- Time-base corrector (TBC) helps stabilize jittery, unstable video sources
- Noise reduction with temporal, block, mosquito, and comb filtering
- 3D comb filter provides improved color separation for composite video inputs
- IR, Ethernet, and RS-232 Controls
- You can control the VP-770 directly using the on-screen display (OSD) accessed via buttons on the front panel, from a computer using the RS-232 serial interface, or over a network using IP protocol
- Audio Delay
- Manually adjustable audio delay allows you to bring audio and video into sync
- Multiple Aspect Ratio Selections
- Select from follow input, follow output, best fit, letterbox, and overscan
- De-interlacing
- Supports 3:2 and 2:2 pull-down and features 24sf handling
Other Notable Features - 1RU, rackmountable design
- Non-volatile memory retains user setting even after disconnecting power
- Selectable power saving modes
- Firmware updates via RS-232
In the Box Kramer VP-770 8-Input Presentation Switcher/Switcher with Speaker Output IR Remote Control Rack Ears Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-770 8-Input Presentation Switcher Switcher with Speaker Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-770 Specs | Input Connectors | 2x HDMI
1x DisplayPort (version 1.1a)
2x VGA on 15-pin D-sub connector
1x Component video on 3 RCA connectors
2x Composite video on RCA connector
5x Unbalanced stereo audio on 3.5 mm mini jack connector - one per each HDMI, VGA, and DisplayPort input
2x Unbalanced stereo audio on two RCA connectors - one per each composite input
1x S/PDIF digital audio on RCA connector - for component video input
1x Unbalanced mic input on 3.5 mm mini jack connector | | Output Connectors | 1x HDMI
1x VGA on 15-pin D-sub connector
1x DGKat on RJ-45 connector
1x S/PDIF digital audio on RCA connector
1x Unbalanced stereo audio on 3-pin terminal block
1x 10 W amplified stereo audio on speaker jack connectors | | Output Resolutions | Computer
640 x 480: 60, 75 Hz
800 x 600: 50, 75 Hz
1024 x 768: 50, 60, 75 Hz
1280 x 768: 50, 60 Hz
1280 x 800: 60 Hz
1280 x 1024: 50, 60, 75 Hz
1360 x 768: 60 Hz
1366 x 768: 50, 60 Hz
1400 x 1050: 50, 60 Hz
1600 x 900: 60, 50 Hz
1600x1200: 60 Hz
1680 x 1050: 60 Hz
1920 x 1200: 60 Hz
Video
480i: 60
480p: 60
576i: 50
576p: 50
720p: 50, 59.94, 60
1080p: 23.976, 24, 25, 29.97, 30, 50, 59.94, 60
2K (2048 x 1080): 60, 50 Hz | | Controls | On-screen display (OSD) - via front panel buttons
IR remote control
1x RS-232 port on 9-pin D-sub connector
1x Ethernet port on RJ-45 connector | | Power Requirements | 100 - 240 VAC / 56 VA max. | | Rack Height | 1 RU | | Dimensions | 19 x 9.3 x 1.8" / 482 x 236 x 44 mm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 21.6 x 13.3 x 4.4" |
