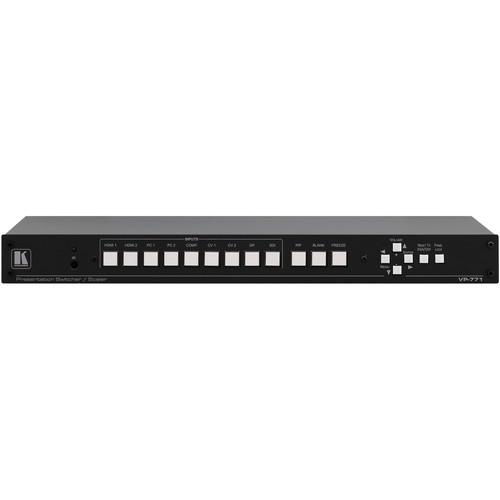

User Manual for Kramer VP-771 Presentation Switcher Scaler Click to enlarge the picture
Contents of the user manual for the Kramer VP-771 Presentation Switcher Scaler
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VP-771 Presentation Switcher Scaler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Electronics VP-771 Presentation Switcher/Scaler supports a variety of signals. It accepts one of nine inputs: component video, DisplayPort (DP), 3G HD−SDI, two computer graphics, two composite video and two HDMI signals. It scales the video, embeds the audio, and outputs the signal to one HDMI, one computer graphics, one 3G HD−SDI and one DGKat TP, together with digital audio, unbalanced stereo and a 2x10W amplified balanced stereo speaker output. - K-IIT XL Picture-in-Picture Image Insertion Technology: ultra-stable picture−in−picture, picture−in−picture, and split screen capability. Any video source can be inserted into or positioned next to a computer graphics video source or vice versa, with window positioning and sizing controls
- K-Storm Scaling Technology: Kramer's extremely high performance scaling technology for converting the incoming video signal to a scaled output resolution with a minimum of motion artifacts. Up− and down−scaling of computer graphics video signals is possible
- Ultra-Fast Fade-Thru-Black (FTB) Switching: video transitions are clean and ultra fast. The video fades to black and the new input fades from black for smooth, glitch free switching. The output signal provides constant sync so the display never glitches
- Advanced Deinterlacing Functions: method, sync, selectable film modes, diagonal correction and motion detection sensitivity, 3:2 and 2:2 pull−down; 24sf handling.
- The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output
- Multi-Standard Operation: SDI (SMPTE 259M and SMPTE 344M), HD−SDI (SMPTE 292M) and 3G HD−SDI (SMPTE 424M)
- Advanced input and output EDID management
- Video Inputs: component (Y, Pb, Pr) video on RCA connectors, DisplayPort (DP), SD/HD/3G HD−SDI (including SDI loop) on BNC connectors, 2 computer graphics on 15−pin HD connectors, 2 composite video on RCA connectors and 2 HDMI
- Scaled Outputs: HDMI, computer graphics on a 15−pin HD connector, SD/HD/3G HD−SDI on a BNC connector and DGKat twisted pair on an RJ−45 connector
- SDI Channeling: select one active signal and three bypassed signals from eight embedded stereo audio channels
- Multiple Output Resolutions: Up to 2K and 1080p
- Luma Keying: via PIP window
- Built-in ProcAmp Color: sharpness, contrast, brightness and gamma are set individually for each input
- 3D Comb Filtering: provides the best quality color separation for composite video inputs
- Built-in Time Base Corrector: stabilizes unstable video sources
- Powerful Noise Reduction Filters: temporal, block, mosquito and combing
- Picture Zooming: both on main and PIP window from 100% to 1600%, including separate V and H sharpness control
- Multiple Aspect Ratio Selections: follow input; follow output, best fit, letterbox and over scan
- Dual Window Display: preset picture−in−picture, picture−and−picture and split screens, as well as customized window layouts
- Audio Inputs: 2x HDMI, 2x computer graphics and 1x DisplayPort and 1x microphone in on 3.5mm mini jacks; 2x CV and 1 S/PDIF on RCA connectors
- Audio Outputs: 1 S/PDIF on an RCA connector, 1 unbalanced stereo audio on a 3−pin terminal block connector and 2x10W power amplifier for balanced speakers on terminal block connectors
- HDMI Audio: embeds/de−embeds HDMI audio with delay of 0−90msec for lip-sync correction
- Microphone Input: supports mix and talk-over features, as well as 0−90msec delay to prevent feedback
- Non-volatile memory saves final settings
- Firmware Upgrades: via Ethernet and RS−232
- Flexible Control Options: front panel buttons, contact closure, OSD (on−screen display) via front panel buttons or IR remote (remote control included), Control Application software for use via Ethernet and RS−232
- Selectable power-save modes
- Worldwide Power Supply: 100 to 240 VAC
In the Box Kramer VP-771 Presentation Switcher/Scaler Power Cord Rack Ears IR Remote Control Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-771 Presentation Switcher Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-771 Specs | Inputs | 2x HDMI (deep color) connectors
2x VGA on 15−pin HD connectors
1x component video on 3 RCA connectors
2x composite video on RCA connectors, 1x DisplayPort connector
1x SD/HD/3G HD−SDI plus loop a BNC connector
2x HDMI, 2x VGA, 1 DP, 2x CV unbalanced stereo audio on 3.5 mm mini jack connectors
1x S/PDIF (for component video input) digital audio on an RCA connector
1x mic on a 3.5 mm mini jack connector | | Outputs | 1x VGA on a 15−pin HD connector
1x SD/HD/3G HD−SDI on a BNC connector
1x HDMI (deep color) connector
1x DGKat on an RJ−45 connector
1x S/PDIF digital audio on an RCA connector
1x unbalanced stereo audio on a 3−pin terminal block connector
2x 10 W speaker amplifier balanced stereo audio on terminal block connectors | | Compliance With HDMI Standard | Supports HDMI (deep color) and HDCP; DisplayPort 1.1a | | Output Resolution | 640 x 480 @ 60, 640 x 480 @ 75, 800 x 600 @ 50, 800 x 600 @ 60, 800 x 600 @ 75, 1024 x 768 @ 50, 1024 x 768 @ 60, 1024 x 768 @ 75, 1280 x 768 @ 50, 1280 x 768 @ 60, 1280 x 800 @ 60, 1280 x 1024 @ 50, 1280 x 1024 @ 60, 1280 x 1024 @ 75, 1360 x 768 @ 60, 1366 x 768 @ 50, 1366 x 768 @ 60, 1400 x 1050 @ 50, 1400 x 1050 @ 60, 1600 x 900 @ 60, 1600 x 1200 @ 50, 1600 x 1200 @ 60, 1680 x 1050 @ 60, 1920 x 1200 @ 60, 480i60, 480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080 @ 60 Hz, 2048 x 1080 @ 50 Hz | | Controls | Front panel buttons, OSD, IR remote control, RS−232 on a 9−pin D−sub connector, Ethernet, contact closure | | Power Consumption | 100 to 240 VAC, 56 VA maximum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | −40 to 158°F (−40 to 70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Rack Space | 1U rack unit | | Dimensions (WxD) | 19.00 x 9.30" (48.26 x 23.62 cm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 7.45 lb | | Box Dimensions (LxWxH) | 21.5 x 13.3 x 4.4" |
