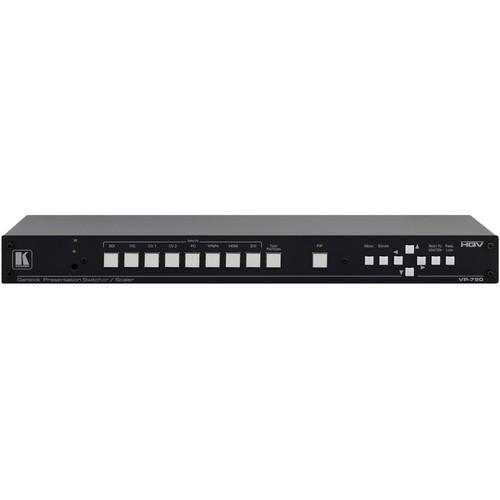

Product description The Kramer VP-790 8-Input ProScale Genlock Presentation Scaler / Switcher is designed for RGB component, computer graphics, composite, S-Video, HDMI, DVI, and 3G HD-SDI signals. The unit takes one of the inputs, scales the video, embeds the audio and outputs the signal to computer graphics, DVI/HDMI, and 3G HD-SDI outputs simultaneously. - HQV Video Processing: HQV (Hollywood Quality Video) processing represents the state-of-the-art in video processing technology, with high quality de-interlacing (with 3:2 & 2:2 pull down), noise reduction, and scaling performance for both standard-definition and high-definition signals
- Maximum Data Rate: 3 Gbps (3G HD-SDI)
- HDCP Compliant: The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output
- Multi-Standard Operation: SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), and 3G HD-SDI (SMPTE 424M)
- Video Warping: Uses user-generated screen coordinates to match any linear or non-linear surface
- Edge Blending: Facilitates building large images using multiple projectors by feathering the overlapped edges
- Video Inputs: 1 HDMI, 1 computer graphics video (15-pin HD), 2 composite video (BNC & RCA), 1 S-Video (4-pin), component video (RGBS), & 1 DVI
- Genlock Input: Ideal for use in broadcast video applications
- Scaled Outputs: DVI/HDMI, 3G HD-SDI, & computer graphics video (15-pin HD)
- Gaming Mode Option: For minimum latency
- Audio Output: S/PDIF de-embedded from HDMI or SDI
- Multiple Aspect Ratio Selections: Full, overscan, underscan, letterbox, & panscan
- Built-in ProcAmp: Color, hue, sharpness, noise, contrast, and brightness
- Front Panel Controls: OSD, front panel buttons including test pattern, PIP, and Reset to XGA/720p
- Non-Volatile Memory: Saves final settings
- Flexible Control Options: Front panel with OSD (On-Screen Display), IR remote, Ethernet, and RS-232
- Worldwide Power Supply: 100 to 240 VAC
- Standard 19" (48.26 cm) rack mount size (1 U): Rack ears included
- Applications: Projection systems in conference rooms, boardrooms, auditoriums, hotels, and churches, production studios, rental, and staging.
Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for projection purposes. Large screen displays and multiple screen applications from video or graphic sources In the Box Kramer VP-790 8-Input ProScale Genlock Presentation Scaler / Switcher Power Cord Rack Ears IR Remote Control Transmitter 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-790 8-Input ProScale Genlock Presentation Scaler Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-790 Specs | Inputs | 1x SD/HD/3G HD-SDI on a BNC connector
1x HDMI connector (HDCP version 1.1)
1x VGA on a 15-pin HD connector
1x composite video on an RCA connector
1x composite video on a BNC connector
1x component video / RGBS on 3/4 RCA connectors
1x DVI on a DVD-I connector
1x S-Video on a 4-pin connector | | Outputs | 1x SD/HD/3G HD-SDI on a BNC connector
1x DVI/HDMI on a DVI-D connector (HDCP version 1.1)
1x VGA on a 15-pin HD connector
1x S/PDIF on an RCA connector | | Output Resolutions | 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 1024, 1360 x 768, 1366 x768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1200, 480i, 480p, 576p, 720p, 1080i, 1080p | | Controls | Input selector buttons: Blank, mute, freeze, reset to XGA/720p, panel lock. Menu functions: menu, enter, menu arrows. RS-232, Ethernet, IR | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -13 to 185°F (25 to 85°C) | | Humidity | 5 to 95%, RHL non-condensing | | Power Consumption | 100 to 240 VAC, 35 VA maximum | | Dimensions | W x D: 19 x 7" (48.26 x 17.78 cm)
Height: 1 U (rack mountable) | | Weight | Approximately 6 lb (2.7 kg) | | | | Box Dimensions (LxWxH) | 43.64 x 18.3 x 4.36" |
