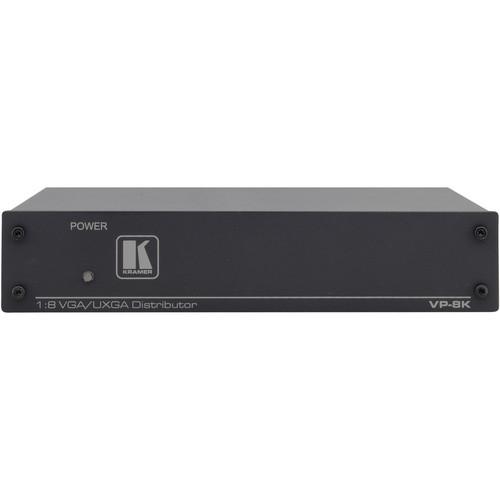

User Manual for Kramer VP-8K Video Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Kramer VP-8K Video Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Distribution Amplifiers (DA's)
|
User manual for the Kramer VP-8K Video Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Electronics VP-8K Video Distribution Amplifier distributes 1 input to 8 different outputs with correct buffering and isolation. When used with breakout cables such as Kramer C-GM / 3RVF, the amplifier is compatible with HDTV component video signals. With resolution up to UXGA and high bandwidth of 370 MHz, it is ideal for transfer of computer graphics. Provided with Kr-isp Advanced Sync Processing, the VP-8K Video Distribution Amplifier restores the sync signal waveform and offers compatibility with low-sync level computers. Being compact (8.45 x 6.4 x 1.72"), 2 units of this amplifier can be easily mounted next to each other in a 1RU using the RK-1 adaptor (optional). - Distributes 1 input to 8 different outputs with correct buffering and isolation
- Compatible with HDTV component video signals when used with breakout cables such as Kramer C-GM / 3RVF
- Offers a resolution up to UXGA and a high bandwidth of 370 MHz, making it ideal for transfer of computer graphics
- Kr-isp Advanced Sync Processing - restores the sync signal waveform and enables compatibility with low-sync level computers
- Compact (8.45 x 6.4 x 1.72") and 2 units of can be easily mounted next to each other in a 1RU using the RK-1 adaptor (optional)
In the Box Kramer VP-8K Video Distribution Amplifier Power Supply 7 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-8K Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-8K Specs | Input | 1 VGA/UXGA on a 15-pin HD (F) connector | | Outputs | 8 VGA/UXGA on 15-pin HD (F) connectors | | Maximum Output Level | 2.2Vpp | | Bandwidth | 370MHz (-3dB) | | Differential Gain | 0.05% | | Differential Phase | 0.05° | | K-Factor | <0.05% | | Signal to Noise Ratio | 73dB | | Control | TTL/ANALOG switch (on the rear panel) | | Coupling | DC | | Power Source | 5V DC, 390mA | | Dimensions (WxDxH) | 8.5 x 6.4 x 1.7" (21.5 x 16.3 x 4.4cm) | | Weight | 1.5 lbs (0.7kg) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 13.7 x 8.4 x 2.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
