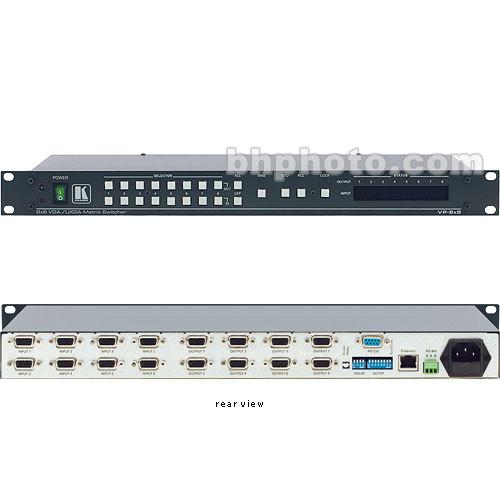

Product description The Comprehensive/Kramer VP-8x8 is an eight input, eight output, true matrix, computer graphics video switcher. It offers front panel touch switches and an LED display of routing structure. It can be controlled remotely and configures with audio and control switchers of the same design. - Vertical Interval
- When input sources are referenced to the same signal glitch free transitions are accomplished. This is offered by utilizing up to a 4 second user selectable delay.
- Remote Switching
- Remote switching is accomplished via IR, RS-232 and RS-485 control interfaces.
- LED Display
- Routing structure is continuously displayed on front panel.
- Presets
- Multiple presets are available quick access to the most frequently used configurations.
- HDTV Compatible
- HDTV signals can be routed through this switcher.
- Active Input Indication
- Each input button on the front panel automatically lights up when the unit detects a video signal on that input. When an input is selected to be switched, the button changes to a different color to indicate it is the active input.
- Rackmountable
- Fits into standard studio rack space without extraneous equipment.
In the Box Kramer VP-8x8 Computer Graphic 8x8 Matrix Switcher - Graphic and HD Video, HD-15, RS-232, RS-485, IR Remote, Rackmountable Power Cord Null Modem Adapter Windows Control Software 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VP-8x8 Computer Graphic 8x8 Matrix Switcher - Graphic and HD Video, HD-15, RS-232, RS-485, IR Remote, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VP-8X8 Specs | Input | High Resolution Video x8, up to UXGA, on HD-15 Connectors
RS-232, on a 9-Pin connector
RS-485, on closed contact connectors | | Output | High Resolution Video x8, up to UXGA, on HD-15 Connectors | | Switch Type | Vertical Interval
Front Panel Touch Buttons
Remote via IR, RS-232 and RS-485 | | Video Bandwidth | 400 MHz | | Differential Gain | 0.04% | | Differential Phase | 0.04° | | Video Signal-to-Noise Ratio | 75 dB | | Control | Front Panel Touch Switches
Remote via RS-232 and RS-485
Rear panel sync termination
IR Handheld Remote | | Power Source | 85 to 264 VAC @ 47 to 440 Hz | | Dimensions (WxDxH) | 19 x 7 x 1.75"
48.26 x 17.78 x 4.45cm | | Weight | 6 lbs
2.7 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 21.5 x 11.0 x 4.1" |
