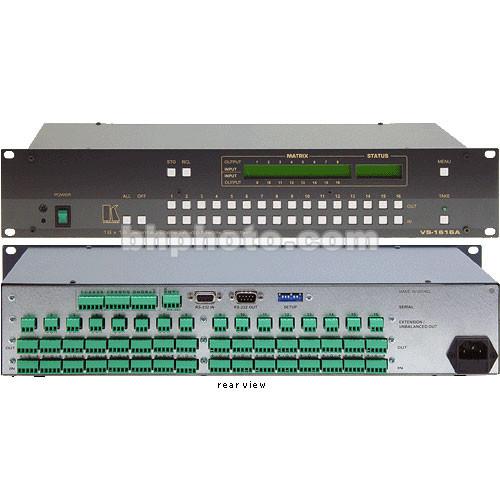

User Manual for Kramer VS-1616A 16x16 Balanced Stereo Audio Matrix Switcher, Detachable Terminal Blocks, RS-232, Rackmountable Click to enlarge the picture
Contents of the user manual for the Kramer VS-1616A 16x16 Balanced Stereo Audio
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-1616A 16x16 Balanced Stereo Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Comprehensive VS-1616A is a sixteen input, sixteen output, balanced stereo audio, true matrix switcher. It offers great audio performance and programmable, digital switching. - True Matrix
- Allows any input to be routed to any or all outputs simultaneously.
- Digital Programmable Switching
- Offering 16 user programmable preset memory settings and an LED Input/Output display.
- RS-232
- Remote switching via a DB-9, RS-232 connection is possible from a PC and signals can be looped through to other RS-232 devices.
- Rackmountable
- This unit fits into standard studio rack spaces without extraneous equipment
In the Box Kramer VS-1616A 16x16 Balanced Stereo Audio Matrix Switcher, Detachable Terminal Blocks, RS-232, Rackmountable Power Cord Windows Control Software Null Modem Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-1616A 16x16 Balanced Stereo Audio Matrix Switcher, Detachable Terminal Blocks, RS-232, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-1616A Specs | Input | Balanced Stereo Audio x16, +4 dBm @ 10K ohms, on detachable terminal blocks
RS-232, on 9-Pin connectors | | Output | Balanced Stereo Audio x16, +4 dBm @ 50 ohms, on detachable terminal blocks | | Switch Type | Front Panel Programmable, digital | | Audio Bandwidth | 100 kHz | | Signal to Noise Ratio | 82.2 dB | | Audio THD | 0.04% | | Control | Front Panel Programmable, PC remote via RS-232:
On/Off
Store
Recall
Input Selection 1 to 16
Output Selection 1 to 16
Menu
Take
Select All
All OffRear Panel:
Dip Switches | | Power Source | 115 VAC 60 Hz
230 VAC 50 Hz | | Dimensions (WxDxH) | 19 x 7 x 3.5"
48.26 x 17.78 x 9cm | | Weight | 7.8 lbs
3.5 kg | | | | Package Weight | 9.4 lb | | Box Dimensions (LxWxH) | 21.6 x 11.7 x 6.5" |
