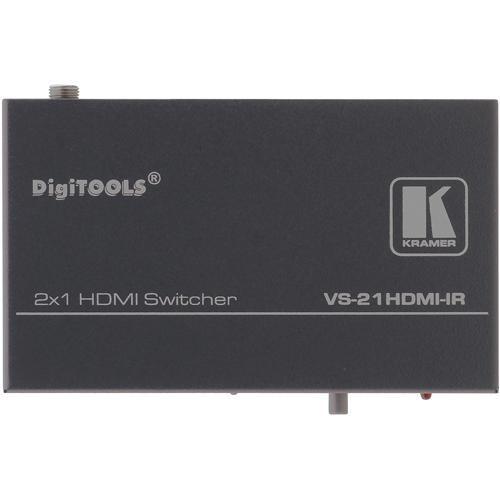

User Manual for Kramer VS-21HDMI-IR HDMI Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VS-21HDMI-IR HDMI Switcher
- Product category: HDMI & A/V Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer HDMI & A/V Switchers
 |
User manual for the Kramer VS-21HDMI-IR HDMI Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

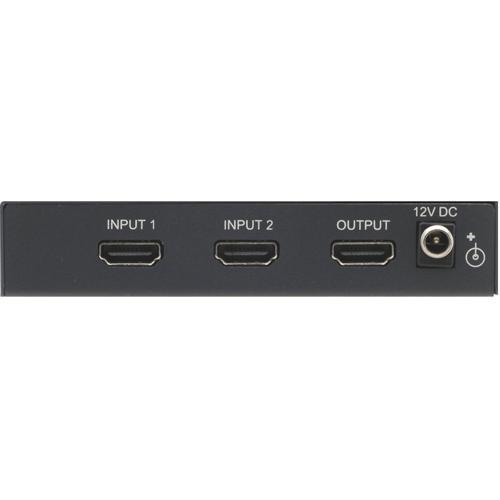

Product description The Kramer VS-21HDMI-IR is a 2x1 HDMI switcher equipped with (2) HDMI inputs and (1) HDMI output and includes IR remote control switching. The device is compliant with HDCP and HDMI v1.2 and is ideal for a wide range electronic devices that demand digital output, including Blu-ray players, TV boxsets, video game consoles. - Kramer equalization and re-Klocking Technology rebuilds the digital signal to travel longer distances.
- The unit can store and recall a default EDID setting in memory, allowing convenient and reliable connection to the source.

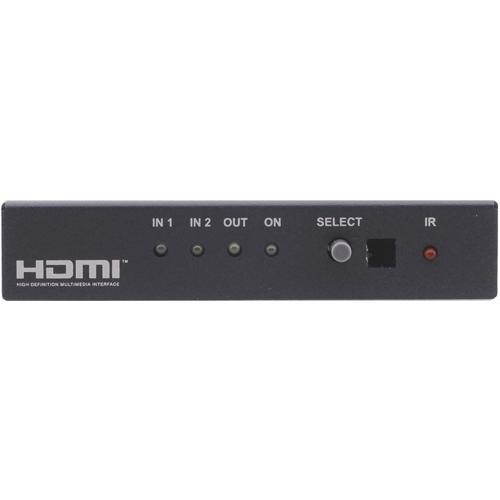

- Active input and output LED indictors.
- Maintains an HDMI single link video resolution of 1080p
- Supports the DDWG standard for HDMI compliant displays
- Three units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
In the Box Kramer VS-21HDMI-IR HDMI Switcher Power Supply Bracket Installation Kit IR Remote Controller 2 x AAA Batteries for Remote Controller Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-21HDMI-IR HDMI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-21H-IR Specs | Video Output | HDMI 1.2a, HDCP 1.0/1.1 | | Video Bandwidth | 1.65Gbps | | Inputs/Outputs | HDMI: HDMI (x1 Input, x2 Output) | | Format | PC: 640x480 up to 1920x1200
DTV/HDTV Video: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p | | Operating Temperature | 32-158°F (0-70°C) | | Storage Temperature | 14-178°F (-10-80°C) | | Power Consumption | 12VDC | | Power Requirements | 160mA | | Dimensions (WxHxD) | 4.7 x 2.8 x 1.1" (12 x 7.2 x 2.8cm) | | Weight | 0.7 lbs (0.3kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.0 x 5.5 x 4.0" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
