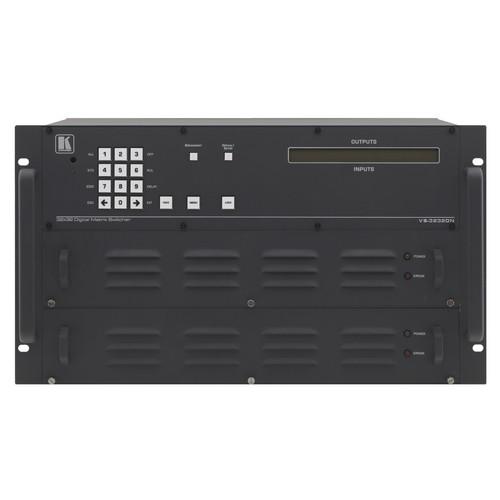

User Manual for Kramer VS-3232DN 4x4 to 32x32 Modular Multi-Format Digital Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VS-3232DN 4x4 to 32x32 Modular
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-3232DN 4x4 to 32x32 Modular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer VS-3232DN 4x4 to 32x32 Modular Multi-Format Digital Matrix Switcher is a high performance matrix switcher chassis for DVI & HDMI signals. The unit is modular and populated from 4 x 4 to 32 x 32 in increments of 4 inputs and / or 4 outputs. The chassis includes 1 power supply but can also accept a second redundant power supply (sold separately), a control module, and a test module that can monitor and test any input and output in the matrix. - Kramer Core (Flexible Infrastructure Conversion)
-
- Copper, fiber or twisted pair all can be used at the same time, according to input / output module selection
- Matrix receives digital signals from compatible Kramer transmitters, automatically converts between available infrastructure options and sends the signals to compatible Kramer receivers
- Versatile device
- Maximum Data Rate
- 3.2 Gbps per graphics channel and up to 10.4 Gbps total
- HDCP Compliant
- DVI (HDCP), HDMI, and DGKat (twisted pair) modules
- DGKat Signal Integration
-
- Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables
- Kramer DGKat cables designed for optimum performance
- Kramer Equalization & re-Klocking Technology
- Rebuilds the digital signal, allowing it to travel longer distances
- Modular & Easily Configurable Platform
- Input or output module types can be mixed and added in increments of 4 from 4 x 4 up to 32 x 32
- I-EDIDPro Kramer Intelligent EDID Processing
- Intelligent EDID handling and processing algorithm ensures plug and play operation for DVI and HDMI systems
- Flexible Control Options
- Front panel, IR remote, RS-232 (K-Router Windows-based software is included), and Ethernet
- Take Button
- Executes multiple switches all at once
- Memory Locations
- Stores multiple switches as presets to be recalled and executed when needed
- Test Pattern Module
- 4 output resolutions for troubleshooting video problems
- Worldwide Power Supply
- 100 to 240 VAC with an optional hot-swappable redundant power supply
- Standard 19" (482.9 mm) Rack Mount Size
- 6U rack ears included
- Applications
- Professional display systems requiring video signal routing, broadcast, presentation and production facilities, as well as monitoring in large duplication systems, and rental / staging applications
In the Box Kramer VS-3232DN 4x4 to 32x32 Modular Multi-Format Digital Matrix Switcher Power Cord RC-IR3 Infrared Remote Control Transmitter (with Batteries & User Manual) User Manual Set of Rack Ears Windows-Based Kramer Control Software Windows-Based Ethernet Configuration Manager & Virtual Serial Port Manager Quick Start Sheet 4 x Rubber Feet 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-3232DN 4x4 to 32x32 Modular Multi-Format Digital Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-3232DN Specs | Inputs | 4 to 32 (in increments of 4)
DVI or HDCP, 1.2 Vpp on DVI Molex 24-pin (female) connectors, DDC signal 5 Vpp (TTL)
HDMI; fiber optic on LC connectors; DGKat on RJ−45 connectors
2 to 16 (in increments of 2) DVI dual link, 1.2 Vpp on DVI Molex 24-pin (female) connectors | | Outputs | 4 to 32 (in increments of 4)
DVI or HDCP, 1.2 Vpp on DVI Molex 24-pin (female) connectors; DDC signal 5 Vpp (TTL)
HDMI; fiber optic on LC connectors; DGKat on RJ−45 connectors
2 to 16 (in increments of 2) DVI dual link, 1.2 Vpp on DVI Molex 24-pin (female) connectors | | Bandwidth | Supports up to 3.2 Gbps bandwidth per graphic channel | | Compliant Standards | Supports DVI 1.0 | | Maximum Resolution | Up to UXGA, 1080p, 1920 x 1200 | | Controls | Front panel buttons, infrared remote control transmitter, RS-232, and Ethernet | | Switching | Confirm or At Once for immediate switching | | Power Consumption | 100 to 240 VAC, 50 / 60 Hz, 320 VA with optional hot-swappable redundant power supply | | Dimensions | W x D: 19 x 15" (482.6 x 381 mm)
Height: 6U
(rack mountable) | | Weight | Approximately 25.4 lb (11.5 kg) |
