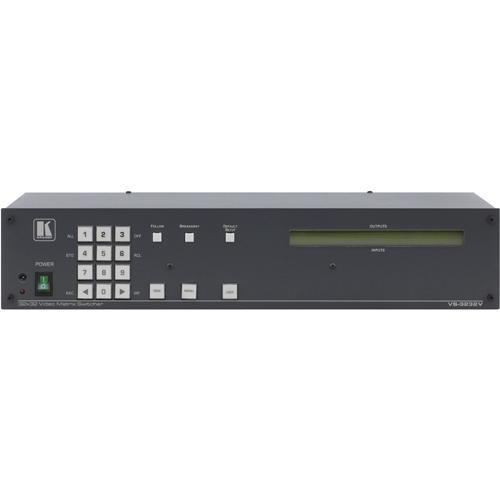

Product description The VS-3232V 32x32 Composite Video Matrix Switcher from Kramer will route any of (32) composite input signals to any of (32) composite outputs. Because this is a true matrix switcher any of the inputs can be routed to any or all of the outputs simultaneously. - Use this unit to route any or all of (32) composite input signals to any or all of (32) composite outputs
- It offers bandwidth of 300MHz fully loaded (-3dB)
- This unit features three sync options for genlock switching:
- External sync input
- Sync from input #1
- External system sync from another compatible switcher
- Store multiple setups as presets (salvos) for recall and execution as needed
- A take button executes multiple switches at the same time
- Control options include: front panel, RS-232, RS-485, Ethernet, and IR remote control
- This unit's capacity can be scaled by combining two or three units to create a 2-level (Y/C) or 3-level (YUV) matrix switcher
- It supports Kramer 2000 and Sierra ASCII communication protocols
- This device features DC coupling
- A worldwide power supply of 100 to 240VAC ensures compatibility wherever it is used
- This unit can be installed in 2U of a standard rack using the included rack ears
In the Box Kramer VS-3232V 32x32 Composite Video Matrix Switcher Power Cord Null-Modem Adapter Windows Control Software Windows Ethernet Configuration Manager & Virtual Serial Port Manager IR Remote Control Transmitter Set of Rack Ears Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-3232V 32x32 Composite Video Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-3232V Specs | Inputs | (32) composite video, 1Vpp/75 Ohms on BNC connectors | | Outputs | (32) composite video, 1Vpp/75 Ohms on BNC connectors | | Performance | Video Bandwidth: 300MHz (-3dB), >50MHz (0.1dB)
All Hostile Crosstalk: <-49dB @ 5MHz
Non-Linearity: <0.1%
Video Signal-to-Noise Ratio: 63dB unweighted, 70dB @5MHz weighted
Differential Gain: <0.05% 0.8Vpp
Differential Phase: <0.03 degrees
K-Factor: <0.05%
Coupling: DC | | Control | (19) pushbutton switches
RS-232
RS-485
IR remote
Ethernet | | Power | 230VAC, 50/60Hz, 115VAC | | Dimensions (HxWxD) | 1.75 x 19 x 7" | | Weight | 7.8 lbs (3.5kg) | | | | Package Weight | 10.85 lb | | Box Dimensions (LxWxH) | 21.5 x 12.0 x 6.9" |
