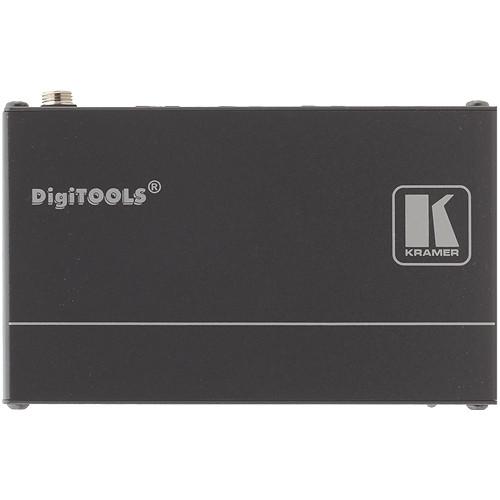

User Manual for Kramer VS-40FW 4-Port FireWire 800 Repeater Hub Click to enlarge the picture
Contents of the user manual for the Kramer VS-40FW 4-Port FireWire 800 Repeater
- Product category: Hubs Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Hubs
|
User manual for the Kramer VS-40FW 4-Port FireWire 800 Repeater contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description Kramer's VS-40FW 4-Port FireWire 800 Repeater/Hub features a max data rate of 800Mbps. The VS-40W also increases the number of ports at your disposal - including 4 FireWire 800 ports. The range of the repeater/hub runs from 14.75 to 29.5 feet. Additional units can be cascaded, extending the range up to 236 feet max. Kramer's Spark-Guard Pro protects against electrostatic discharge, ensuring the safety of the unit itself and your other connected digital devices. The VS-40FW can be rack mounted - up to 3 units fit side-by-side into a 1U space (using the optional RK-3T rack adapter). The unit is powered by a 12V DC power supply or through a PC connection. - The VS-40FW is a high-performance bidirectional hub/repeater for 9-pin FireWire 800 (IEEE 1394b) signals. It increases the number of ports available and/or extends the distance of FireWire cable runs
- Ports; 4 bidirectional IEEE 1394b 800Mbps (S800)
- Range: Doubles the cable range of FireWire from 4.5m (14.75') to 9m (29.5'). Multiple units can be cascaded to extend the range to up to 72m (236')
- Hot Swapping: Supports Plug and Play
- Transfer Rates: 100, 200, 400, and 800Mbps
- ESD Protection: Incorporates Kramer's Spark-Guard Pro signal protection circuitry to help protect against EDS (electrostatic discharge) that can damage digital equipment
- Alternate Power Sources: Can be powered from the 12V DC power supply or through the PC connection
- Requires 9-Pin FireWire 800 Cable
- Compact Kramer DigiTOOLS: 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter
In the Box Kramer VS-40FW 4-Port FireWire 800 Repeater/Hub Power Supply Mounting Bracket 3' (0.9m) 9-Pin FireWire Cable 7-Year Labor and Parts Warranty User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-40FW 4-Port FireWire 800 Repeater Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-40FW Specs | Ports | 4 bidirectional IEEE 1394b 800Mbps (S800) ports | | Data Transfer Rate | 100/200/400/800Mbps (S800, S400, S200, S100) | | Power Source | 12V DC power supply PC connection | | Standards | IEEE 1394-1995, IEEE P1394a, IEEE P1394b; fully supports the provisions of the IEEE P1394b Revision 1.33+ at 1 Gigabit signaling rates; fully supports the provisions of the IEEE 1394-1995 Standard for High Performance Serial Bus and the P1394a Supplement; fully interoperable with FireWire and i.LINK implementation of IEEE Std 1394; provides three fully backward compatible (1394a 2000 fully compliant) bilingual P1394b cable ports at up to 800Mbps; fully compliant with OpenHCI requirements; provides three P1394b fully compliant cable ports at 100/200/400/800Mbps; full P1394a support includes: connection debounce, arbitrated short reset, multispeed concatenation, arbitration acceleration, fly-by concatenation, port disable/suspend/resume; extended resume signaling for compatibility with legacy DV devices | | Dimensions (WxHxD) | 4.7 x 0.98 x 2.95" / 12 x 2.5 x 7.5cm | | Weight | 0.67 lb / 0.3kg | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.0 x 4.8 x 3.5" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
