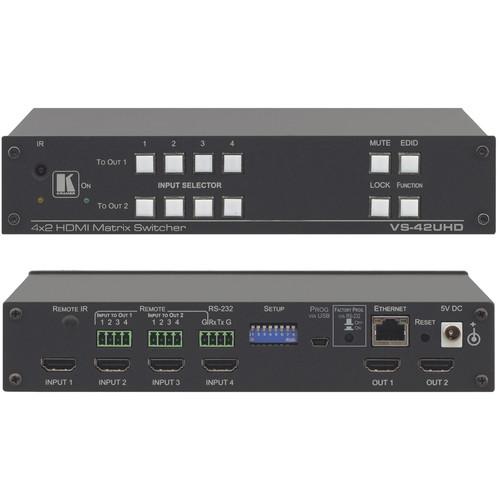

User Manual for Kramer VS-42UHD 4x2 4K UHD HDMI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VS-42UHD 4x2 4K UHD HDMI
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-42UHD 4x2 4K UHD HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VS−42UHD 4K UHD HDMI Matrix Switcher from Kramer is a 4x2 matrix switcher for 4K UHD HDMI signals. It re-clocks and equalizes the signals and can route any input to either or both outputs simultaneously. -
- Up to 8.91 Gbps data rate (2.97 Gbps per graphics channel)
- Suitable for resolutions up to UXGA and 4K
- Supports HDCP (High Definition Digital Content Protection) and HDMI signals
- True video clock detection
- Automatic switching modes (last connected and priority switching)
- Supports 3D, Deep Color, x.v.Color, Lip Sync , ARC, HEAC pass-through, Dolby TrueHD, Dolby Digital Plus, DTS−HD, and 7.1 multi-channel audio
- I-EDIDPro Kramer Intelligent EDID Processing that ensures plug-and-play operation for HDMI systems
- Programmable step-in functionality when used in conjunction with compatible step-in devices, such as SID-X3N, DIP-30, and DIP-31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel)
- Non-volatile EDID storage
- Kramer reKlocking and Equalization Technology that rebuilds the digital signal to travel longer distances
- Static or dynamic DHCP IP addressing
- Embedded web pages that provide remote configuration and operation
- A lock button to prevent unwanted tampering with the buttons on the front panel
- Support for Kramer Protocol 3000
In the Box Kramer VS-42UHD 4x2 4K UHD HDMI Matrix Switcher Power Supply RC - IR3 Remote Control Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-42UHD 4x2 4K UHD HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-42UHD Specs | Inputs | 4 x HDMI | | Outputs | 2 x HDMI | | Ports | 1 x Ethernet on an RJ45 connector
1 x IR on a 3.5 mm mini jack
8 x Remote selection contact-closure switches on 9 terminal block pins
1 x Serial port on a 3-pin terminal block
1 x Program port on a mini-USB | | Bandwidth | Up to 8.91 Gb/s data rate (2.97 Gb/s per graphic channel) | | Compliance | HDMI and HDCP | | Supported Resolutions | Up to UXGA
4K | | Supported RS-232 Baud Rates | 9600, 115200 bps | | Supported Browsers | Windows 7:
Google Chrome v25
FireFox v15
Opera v12
Microsoft Internet Explorer v9
Windows XP:
Google Chrome v25
Firefox v15
Apple Mac:
Google Chrome v25
Firefox v20
Opera v12.14
Safari v6 | | Controls | Front-panel buttons, infrared remote control transmitter, RS-232, Ethernet, remote input selection switches | | Power Consumption | 5 VDC, 880 mA | | Power Supply | 100 to 240 VAC, 65 VA maximum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 8.46 x 6.54 x 1.73" (21.5 x 16.6 x 4.4 cm) | | Weight | 2.0 lb (0.9 kg) approximately | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 13.7 x 8.4 x 2.9" |
