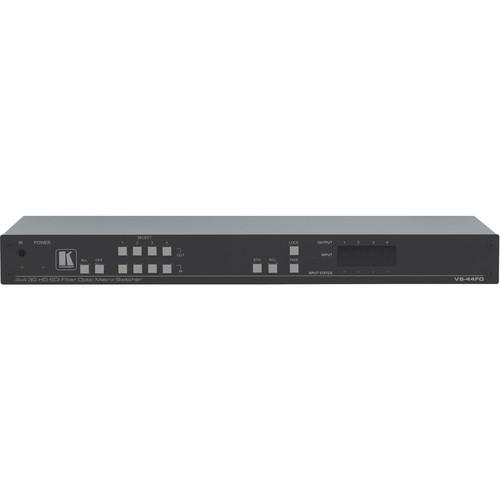

Product description With space for up to four inputs and outputs for SDI over fiber optics, the Kramer VS-44FO 1x1 to 4x4 3G-SDI over Fiber Matrix Switcher is ideal for long-distance operations and installations. Using single-mode LC terminals and separately available SFP modules, video signals can be transmitted to/received from up to 24 miles, depending on the type of SFP modules installed. The VS-44FO can accept up to four SD, HD, and 3G-SDI signals, depending on how many SFP modules are installed, and route them in any preferred way to single or multiple outputs. Onboard genlock ensures the video sources remain in sync and can also generate black burst sync signals. For connecting standard BNC equipment, the VS-44FO is compatible with the Kramer 690 transmitters and receivers. - Features
-
- HDTV compatible
- Connects using standard SFP modules (not included)
- Genlock looping input
- Automatic reclocking and equalization
- Active input reporting – each input button on front panel automatically lights up when unit detects a video signal on that input
Red Indicator: Standard definition input signal
Blue Indicator: High definition input signal - Multiple memory locations – store multiple switches as presets (salvos) to be recalled and executed when needed
- Take button – executes multiple switches simultaneously
- Vertical interval switching – compliant with SMPTE RP-168
- Built-in black burst generator
- Compatible with the separately available 690-series transmitters/receivers
- Flexible control options – front panel, RS-232, RS-485, Ethernet, IR remote (included)
- Worldwide power supply
- Standard 19" rackmount compatible (rack ears included)
In the Box Kramer VS-44FO 1x1 to 4x4 3G-SDI over Fiber Matrix Switcher Power Cord Rack Ears IR Remote Control Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-44FO 1x1 to 4x4 3G-SDI over Fiber Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-44FO Specs | Video Inputs | 4 x SDI over LC optical connection | | Video Outputs | 4 x SDI over LC optical connection | | Data Rate | Up to 3 Gbps per channel | | Genlock | 1 Vpp / 75 Ohms (looping) with termination switch | | Control Ports | 1 x RS-232 D-sub 9
1 x RS-485 3-pin
1 x Ethernet
1 x IR | | Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°:F / -40 to 70°C
Humidity: 10 to 90%, RHL non-condensing | | Power Supply | Universal, 100−240 VAC, 50/60 Hz 13 VA | | Dimensions | 19 x 9 x 1.75" / 483 x 229 x 44 mm
Rack Units: 1 RU | | Weight | 5.7 lb / 2.6 kg |
