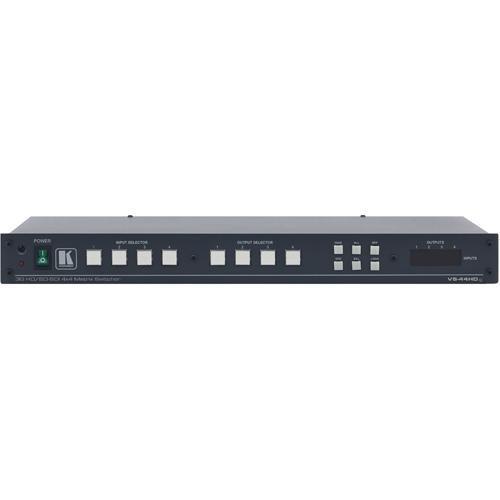

User Manual for Kramer VS-44HDxl 4x4 3G HD-SDI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VS-44HDxl 4x4 3G HD-SDI Matrix
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-44HDxl 4x4 3G HD-SDI Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VS-44HDxl 4x4 3G HD-SDI Matrix Switcher from Kramer is designed to manage SD-SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), dual-link HD-SDI (SMPTE 372M), and 3G HD-SDI (SMPTE 424M) signals. It offers a 4x4 matrix switching configuration. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard. - This unit can manage SD-SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), dual-link HD-SDI (SMPTE 372M), and 3G HD-SDI (SMPTE 424M) signals
- It offers a 4x4 matrix switching configuration
- Switching is implemented during the vertical interval in compliance with the SMPTE RP-168 standard
- It offers a maximum data rate of 3Gbps
- This unit is HDTV-compatible
- Kramer's proprietary re-Klocking & Equalization Technology rebuilds the digital signal to achieve longer transmission distances
- Switching synchronizes either to external reference or incoming video
- Kramer's proprietary Active Input Type Reporting provides detailed signal status reports via LEDs
- Store multiple switches as presets (salvos) to be recalled and executed as needed
- A take button executes multiple switches at the same time
- Control options include: front panel, RS-232, RS-485, Ethernet, contact closure, and IR remote control
- Bi-level and tri-level analog sync type are supported
- Sync-signal termination is selectable
- The device features a front-panel control lockout
- A worldwide power supply of 100 to 240VAC ensures compatibility wherever the unit is used
- It can be mounted in 1U of rack space using the included rack ears
In the Box Kramer VS-44HDxl 4x4 3G HD-SDI Matrix Switcher Power Cord Null-Modem Adapter Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-44HDxl 4x4 3G HD-SDI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-44HDXL Specs | Inputs | (4) SMPTE-259M/292M/424M serial video, 75 Ohms on a BNC connector
(1) genlock 75 Ohms/Hi-Z on a BNC connector, bi-level or tri-level sync | | Outputs | (4) equalized and reclocked SMPTE-259M, 292M outputs 75 Ohms on BNC connectors
(1) looped genlock 75 Ohms/Hi-Z on a BNC connector | | Performance | Maximum Output Level: 800mVpp/75 Ohms
Data Rate: up to 2.97Gbps | | Controls | Front-panel
RS-232
RS 485
Ethernet
Infrared remote
Dry contact
Panel lock | | Power | Universal, 100 to 240VAC, 50/60Hz, 22VA | | Dimensions (HxWxD) | 1.75 x 19 x 7" | | Weight | 5.7 lbs (2.6kg) | | | | Package Weight | 6.05 lb | | Box Dimensions (LxWxH) | 21.6 x 11.0 x 4.25" |
