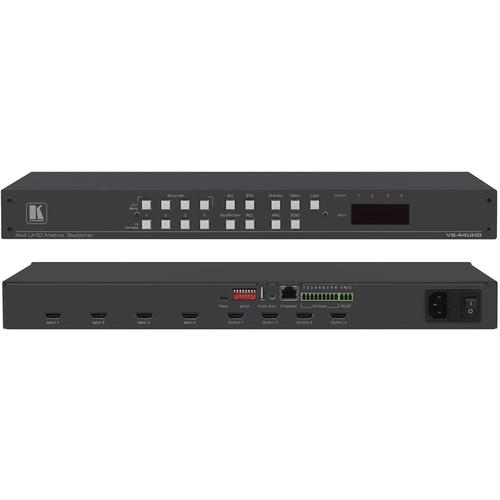

Product description Route any of four HDMI inputs to up to four outputs with the VS-44UHD 4x4 4K60 4:2:0 HDMI Matrix Switcher from Kramer. To maintain signal integrity, the VS-44UHD re-clocks and equalizes the signals before distributing them to the output or outputs of your choice. A flexible audio scheme enables any HDMI digital audio input to be routed to any HDMI digital audio output. Additionally, the switcher supports ARC on all ports to deliver the convenience of an 8x8 audio matrix. - Up to 8.91 Gb/s data rate (2.97 Gb/s per graphics channel)
- Up to 4K at 60 Hz (4:2:0) resolution
- Independent 8x8 audio matrix with four embedded digital inputs + four ARC inputs, and four digital outputs + four ARC outputs
- Step-in over HDMI technology
- HDMI-, HDCP-, and DVI- compliant
- Selectable HDCP off per input
- Eight presets for quick access to common configurations
- Advanced EDID management per input
- Active source and acceptor detection
- Automatic input selection based on priority selection or last connected input
- HDMI support with Deep Color, 3D, ARC, and up to 7.1 uncompressed audio channels
- Kramer's reKlocking and Equalization Technology rebuilds the digital signal to enable longer travel distances
- Embedded pattern generator with selectable patterns
- Lock button prevents tampering
- Kramer Protocol 3000 support
- Firmware upgrades via mini-USB, Ethernet, or RS-232 port
- Control via RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, Ethernet LAN port, or embedded web pages via LAN
- Applications include control rooms with multiple displays, presentation and multimedia applications, and systems that require automatic HDMI routing
In the Box Kramer VS-44UHD 4x4 4K60 4:2:0 HDMI Matrix Switcher Set of Rack Ears Power Cord Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-44UHD 4x4 4K60 4:2:0 HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-44UHD Specs | Inputs | 4 x HDMI, female | | Outputs | 4 x HDMI, female | | Ports | 1 x Mini-USB, programming
1 x RS-232 on a 3-pin terminal block
1 x RJ45, Ethernet
1 x USB Type-A, power to external device | | Video Resolution | Up to 4K at 60 Hz (4:2:0) and 4K at 30 Hz (4:4:4) | | Video Standards | HDMI 1.4 and HDCP 1.4 | | Indicators | Output/input LED display | | Controls | Front panel buttons, RS-232, Ethernet remote connection | | Power Source | 100-240 VAC, 50/60 Hz | | Power Consumption | 500 mA | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Relative Humidity | 10 to 90%, non-condensing | | Rack Space | 1 RU | | Dimensions | 19.00 x 7.20 x 1.75" / 43.6 x 18.3 x 4.4 cm | | Weight | 4.1 lb / 1.9 kg, approx. | | | | Package Weight | 5.4 lb | | Box Dimensions (LxWxH) | 21.6 x 11.0 x 4.2" |
