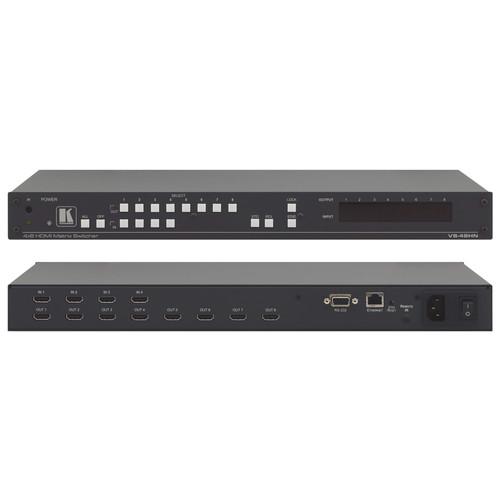

User Manual for Kramer VS-48HN 4x8 HDMI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VS-48HN 4x8 HDMI Matrix Switcher
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-48HN 4x8 HDMI Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The 1RU VS-48HN 4x8 HDMI Matrix Switcher from Kramer is a high-performance matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any HDMI input to any or all HDMI outputs simultaneously. The VS-48HN can be used for conference room presentations, advertising applications, rental and staging. - Data rate up to 6.75Gbps (2.25Gbps per graphic channel)
- Deep Color, x.v.Color, Dolby TrueHD, Dolby Digital Plus, DTS−HD, and linear PCM 7.1 surround sound HDMI support
- Kramer Equalization & re‑Klocking Technology rebuilds the digital signal to travel longer distances.
- EDID Capture copies and stores the EDID from a display device
- Output Disconnect for each output
- Front panel control lockout
- Stores multiple switches as presets to be recalled and executed when needed
- Support for Kramer Protocol 2000 and Protocol 3000
- Flexible Control Options: Front panel, IR remote, RS−232 (K−Router Plus Windows−based software is included), Ethernet (Windows−based Ethernet Configuration Manager & Virtual Serial Port Manager is included)
In the Box Kramer VS-48HN 4x8 HDMI Matrix Switcher (1RU) Power Cord IR Transmitter Rack Ears Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-48HN 4x8 HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-48HN Specs | Inputs | 4 x HDMI | | Outputs | 8 x HDMI | | Bandwidth | 6.75 Gbps (2.25 Gbps per graphic channel) | | Compliance | HDMI and HDCP | | Resolution | Up to UXGA, 1080p | | Power Consumption | 100 - 240 VAC, 50/60 Hz, 40 VA | | Controls | Front panel buttons, infrared remote control transmitter, RS−232, Ethernet | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90% RHL, non-condensing | | Dimensions | 19.0 x 7.0 x 3.5" (48.3 x 17.8 x 8.9 cm) | | Weight | Approx. 4.6 lb (2.1 kg) | | | | Box Dimensions (LxWxH) | 43.64 x 23.72 x 4.36" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
