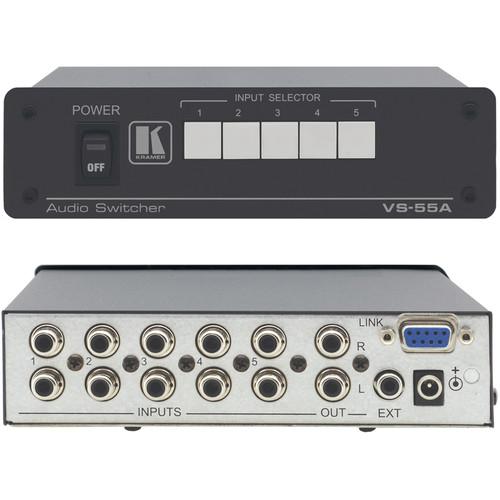

User Manual for Kramer VS-55A Passive Audio Switcher, 5x1, Stereo Audio Click to enlarge the picture
Contents of the user manual for the Kramer VS-55A Passive Audio Switcher, 5x1,
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-55A Passive Audio Switcher, 5x1, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer VS-55A is a five input, one output, passive, unbalanced, stereo audio switcher. It provides the ability to expand by linking other switchers together and operate remotely via contact closure. - Dual Purpose
- In its normal state, this unit is a five input one output audio switcher; because of its passive nature it can be reversed to become a one input, five output assignment switcher.
- Compact
- Measuring 6.5" wide this unit will fit into small studio spaces or operate on a desktop easily.
- EXT Connector
- Allows expansion to cascade numerous units in series.
- LINK Connector
- Allows the ability to "link" a video unit (CVG-55V) for audio follow video applications.
In the Box Kramer VS-55A Passive Audio Switcher, 5x1, Stereo Audio AC Power Adapter 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-55A Passive Audio Switcher, 5x1, Stereo Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-55A Specs Input | Five stereo audio, 1 Vpp @ 50K ohms, on ten RCA connectors | Output | One stereo audio, 1 Vpp @ 100 ohms, on two RCA connectors | Switch Type | Passive, Front panel touch switches Contact closure via the LINK connector | Audio Bandwidth | 100 kHz | Signal to Noise Ratio | 78 dB | Audio THD | 0.08% | Control | Front panel touch switches Remote via LINK connector | Power Source | 12 VDC on AC Adapter | Dimensions (WxDxH) | 6.5 x 4.7 x 1.7" 16.5 x 12 x 4.5cm | Weight | 1.4 lbs 620 grams | | Package Weight | 2.6 lb | Box Dimensions (LxWxH) | 13.75 x 8.45 x 2.9" |
