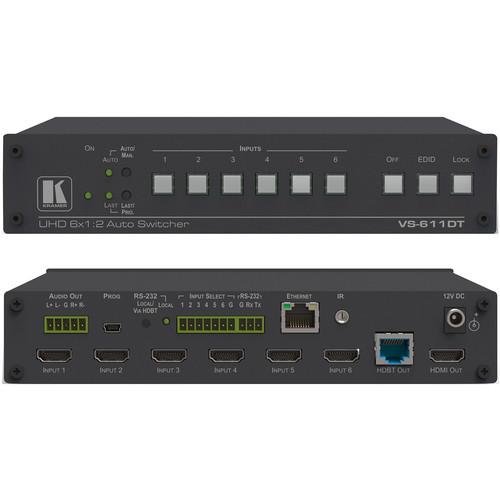

Product description The Kramer VS-611DT is a high-performance automatic switcher for HDMI video signals with resolution up to 3840 x 2160 at 60 Hz (4:2:0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher-priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI outputs. This switcher is suitable for AV installations that require selecting and switching between several HDMI sources automatically. - Maximum data rate of 8.91 Gb/s (2.97 Gb/s per graphic channel)
- Supports resolutions up to 3840 x 2160 at 60 Hz (4:2:0)
- HDCP 1.4 and HDMI 1.4 compliant
- HDMI 1.4 support – Deep Color, Ethernet, ARC, and 7.1 PCM
- Automatic input detection and selection
- Auto power off when no HDMI input for 30 seconds (selectable)
- EDID configuration options
- Selectable manual or fast auto switching according to last connected or preset priority
- Full HDBaseT certification including bi-directional RS-232, Ethernet, IR, and PoE
- HDBaseT extended reach up to 328' at 3840 x 2160 resolution
- PoE source for HDBaseT receivers
- Contact closure for remote manual switching override
- HDMI ARC (Audio Return Channel) de-embedding from output to balanced stereo audio line, uncompressed
- Firmware upgradable via mini-USB, RS-232, or RJ45 Web page
- Controlled via front-panel keyboard, HDBaseT Ethernet, RS-232 local and over HDBaseT, or IR
- Supports Protocol 3000, K-Router Plus, EDID Designer, and K-Upload
- Two units can be mounted side-by-side in a 1 RU rack space with the optional RK-1 adapter
In the Box Kramer VS-611DT 6x1:2 4K HDMI/HDBaseT Extended Reach PoE Auto Switcher Power Cord Rack Ears IR Remote Control Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-611DT 6x1:2 4K HDMI HDBaseT Extended Reach PoE Auto Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-611DT Specs | Inputs | 6 x HDMI connectors
1 x IR on a 3.5 mm mini-jack | | Outputs | 1 x HDMI connector
1 x HDBaseT on an RJ45 connector
1 x balanced stereo audio on a 5-pin terminal block | | Ports | 1 x Ethernet on an RJ45 connector
1 x RS-232 connector on a 3-pin terminal block
6 x contact closures on a 7-pin terminal block
1 x USB mini-A connector for firmware upgrading | | Maximum Data Rate | 8.91 Gb/s (2.97 Gb/s per graphic channel) with 3840 x 2160 at 60 Hz (4:2:0) support | | Compliance With HDMI Standard | Deep Color, Ethernet, ARC, up to 7.1 Audio Channels, CEC | | Output Resolutions | Up to 1920 x 1200, 4K x 2K, 3840 x 2160 at 60 (4:2:0) | | Controls | Local: Front-panel keyboard, contact closure, and HDBaseT
Local and over HDBaseT: RS-232, Ethernet, and IR | | Software Supported | Protocol 3000, K-Router Plus, EDID Designer, and K-Upload | | Power Consumption | 12 VDC, 750 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions | 8.45 x 6.42 x 1.72" (21.46 x 16.3 x 4.36 cm) | | Weight | Approximately 2.1 lb (1 kg) | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 13.6 x 8.3 x 2.8" |
