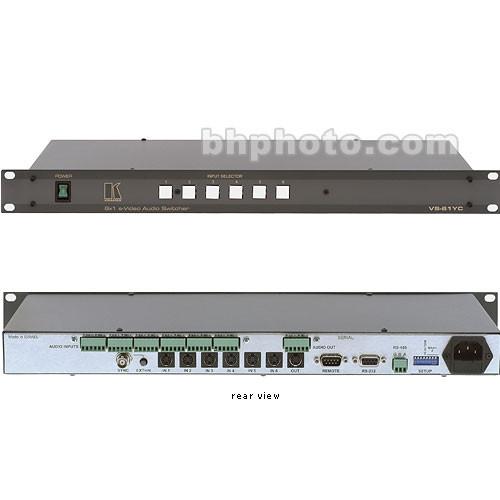

Product description The VS-61YC is a 6x1 Audio Video vertical interval switcher; it accepts Y/C video and balanced stereo audio and will route any one of six inputs to the one A/V output. It features remote control and the ability to reference to studio sync. - Vertical Interval
- When sources are referenced to the same sync source, glitch free switching is accomplished on the vertical interval.
- Remote Control
- Remote control can be accessed via RS-232, RS-485 and contact closure.
- Balanced Audio
- High quality balanced audio is switched using terminal blocks for connectivity.
- Rackmountable
- This device was designed to fit into standard studio rack spaces.
In the Box Kramer VS-61YC 6x1 Y/C & Balanced Audio Vertical Interval Switcher, 4-Pin, Terminal Blocks, RS-232/485, Rackmountable Power Cord Null Modem Adapter Windows Control Software 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-61YC 6x1 Y C & Balanced Audio Vertical Interval Switcher, 4-Pin, Terminal Blocks, RS-232 485, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-61YC Specs | Input | Y/C S-Video x6, Y: 1 Vpp C: 0.3 Vpp @ 75 ohms, on 4-Pin connectors
Balanced Stereo Audio x6, +4 dBm @ 10K ohms, on terminal blocks
Sync, on a BNC connector | | Output | Y/C S-Video, Y: 1 Vpp C: 0.3 Vpp @ 75 ohms, on a 4-Pin connector
Balanced Stereo Audio, +4 dBm @ 50 ohms, on a terminal block | | Switch Type | Vertical Interval | | Video Bandwidth | 250 MHz | | Differential Gain | 0.06% | | Differential Phase | 0.05° | | Video Signal-to-Noise Ratio | 77.2 dB | | Audio Bandwidth | 100 kHz | | Signal to Noise Ratio | 87 dB | | Audio THD | 0.091% | | Control | Front Panel, RS-232, RS-485, Contact Closure
Input selection 1 through 6Rear Panel
Sync Selection Switch
Dip Switches for engineering set up | | Power Source | 115 to 230 VAC @ 50/60 Hz | | Dimensions (WxDxH) | 19 x 7 x 1.75"
48.26 x 17.78 x 4.45cm | | Weight | 6 lbs
2.7 kg | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 21.75 x 10.95 x 4.25" |
