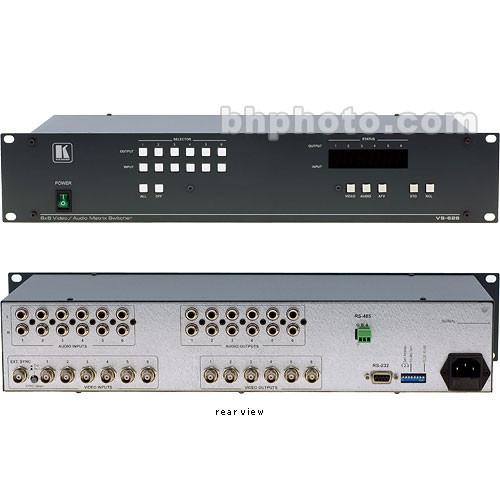

Product description The VS-626 6x6 Video/Audio Matrix Switcher from Kramer is a high-performance matrix switcher for composite video and unbalanced stereo audio signals. This unit is ideally suited for production and duplication facilities, security systems, CCTV feeds, and home theater systems.
This unit switches during the vertical interval to ensure glitch-free switching with genlocked sources. Switching synchronization allows you to reference either external or incoming video. A take button allows for the execution of multiple switches at once, audio breakaway switching is also a standard feature, and memory locations store multiple switch presets to be recalled and executed as needed. Gain level controls are also included with this unit.
Control of the system is managed through the unit's front panel, or with included Windows-based control software. The system comes ready to manage up to 100MHz of bandwidth. It also features a standard 19" width and 2U height to accommodate easy rack placement. - Video & Audio Management
- This unit is designed to manage composite video and unbalanced stereo audio signals.
- Breakaway Audio
- Audio can be routed separately from the video as needed.
- Take Button
- Execute multiple switches at once with this unit's take button.
- Preset Switches
- This unit allows you to store multiple switch presets that can be recalled and executed as needed.
- Control Software
- Manage your system with unit's front panel, or included Windows-based control software.
- Rack Ready
- This unit is designed to fit into a standard 19" rack and occupies only 2U of rack space.
In the Box Kramer VS-626 6x6 Video/Audio Matrix Switcher Switcher Power Cord Windows-based Control Software Null Modem Adapter Seven-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-626 6x6 Video Audio Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-626 Specs | Input | (6) composite video 1Vpp/75ohm on BNC connectors
(1) sync/video genlock with sync select switch
(6) audio stereo up to +4dBm/62kohm on RCA connectors | | Output | (6) composite video 1Vpp/75ohm on BNC connectors
(6) audio stereo +4dBm/50ohm on RCA connectors | | Maximum Output Level | Video: 2Vpp
Audio: +/-20Vpp | | Bandwidth | Video: 100MHz
Audio: 100kHz | | Differential Gain | 0.05% | | Differential Phase | 0.03° | | K-Factor | <0.05% | | Signal-to-Noise Ratio | Video: 74dB
Audio: 88 dB unweighted (1Vpp) | | Crosstalk | Video: -50 dB @ 5MHz (all hostile)
Audio: -71.4dB@1kHz (all hostile) | | Controls | Manual, RS-232 or RS-485 | | Coupling | Video: DC
Audio: AC | | Audio THD + Noise | 0.016% (1V, 1kHz) | | 2nd Harmonic | 0.012% | | Power Source | 230 VAC, 50/60 Hz (115 VAC, USA), 17VA | | Dimensions (WxD) | 19 x 7"
2U rack height | | Weight | 7.5 lbs (3.4kg) | | | | Package Weight | 8.65 lb | | Box Dimensions (LxWxH) | 21.6 x 11.8 x 6.4" |
