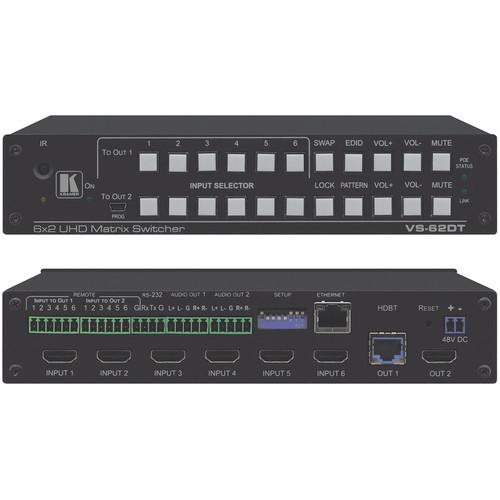

User Manual for Kramer VS-62DT 6x2 4K HDMI HDBaseT Long-Reach PoE Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VS-62DT 6x2 4K HDMI HDBaseT
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
 |
User manual for the Kramer VS-62DT 6x2 4K HDMI HDBaseT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

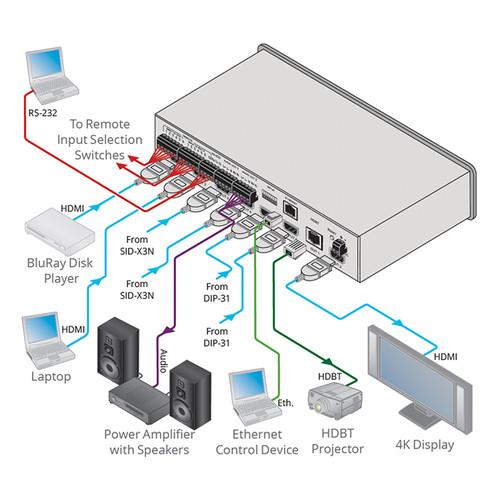

Product description The Kramer VS-62DT is a 6x2 matrix switcher that can route six HDMI inputs to an HDMI and HDBaseT output. It supports long-reach video and audio transmission up to 130' at 3840 x 2160 maximum resolution. This matrix switcher is a PoE provider that provides power over Ethernet to compatible receivers. - Maximum data rate of 8.91 Gb/s (2.97 Gb/s per graphic channel)
- Supports resolutions up to 3840 x 2160 at 60 Hz (4:2:0)
- Six HDMI inputs can be routed to an HDMI and HDBaseT outputs
- Long-reach signal extension up to 230' at 1920 x 1080 and up to 130' at 3840 x 2160
- HDMI 1.4 support – 3D, Deep Color, x.v.Color, Lip Sync, Dolby TrueHD, Dolby Digital Plus, DTS-HD, and 7.1 PCM
- PoE source for powering compatible receivers
- EDID capture – copies and stores the EDID from a display device per input
- Programmable Step-in functionality when used together with compatible step-in devices, such as the SID-X3N and DIP-31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel)
- True video clock detection
- Advanced auto AV switching includes last connected and priority switching modes
- Non-volatile EDID storage
- Kramer reKlocking and Equalization technology rebuilds the digital signal to travel longer distances
- Lock button prevents tampering with front-panel buttons
- Internal pattern generator
- Kramer Protocol 3000 support
- Static or dynamic DHCP IP addressing
- Controlled via front-panel buttons, IR remote (included), RS-232, Ethernet, contact closure, embedded Web server, and step-in
- Mini-USB port for upgrading firmware
- Two units can be mounted side-by-side in a 1 RU rack space with the optional RK-1 adapter

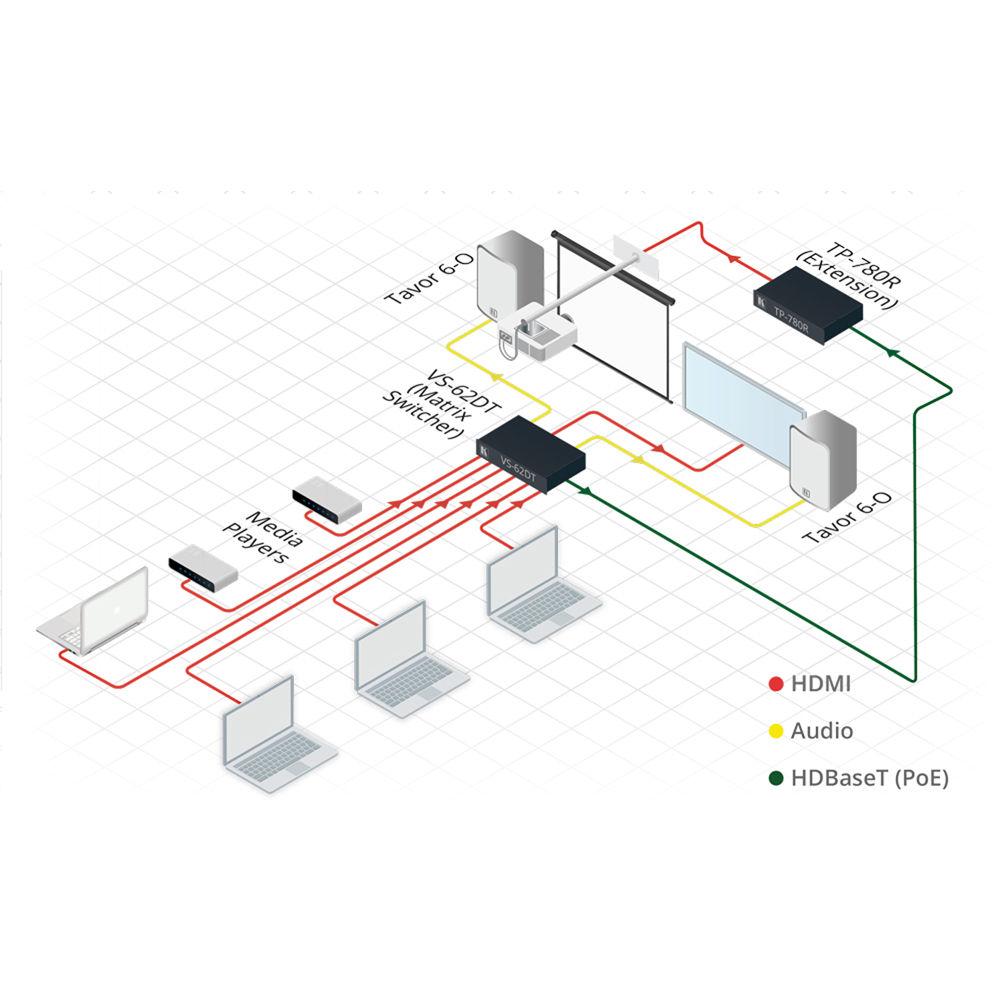

- Suitable for applications like conference rooms, education, and hospitality
In the Box Kramer VS-62DT 6x2 4K HDMI/HDBaseT Long-Reach PoE Matrix Switcher 48 VDC Power Supply IR Remote Control with Batteries 4 x Rubber Feet Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-62DT 6x2 4K HDMI HDBaseT Long-Reach PoE Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-62DT Specs | Inputs | 6 x HDMI connectors | | Outputs | 1 x HDMI connector
1 x HDBaseT on an RJ45 connector | | Ports | 1 x Ethernet on an RJ45 connector
12 x remote selection contact-closure switches on 13-pin terminal block
1 x serial port on a 3-pin terminal block
1 x program port on a mini-USB | | Analog Audio | 2 x balanced stereo audio on 5-pin terminal blocks | | Bandwidth | Up to 8.91 Gb/s data rate (2.97 Gb/s per graphic channel) | | Compliance With HDMI Standard | HDMI 1.4 and HDCP 1.4 | | Resolution | Up to 3840 x 2160 at 60 (4:2:0) | | Baud Rate | 9600, 115,200 b/s | | Controls | Front-panel buttons, IR remote control transmitter, RS-232, Ethernet, remote input selection switches and LEDs, built-in Web browser | | LED Indicators | Red: IR active
Green: On | | Power Consumption | 48 VDC, 360 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions | 8.45 x 6.42 x 1.72" (21.46 x 16.3 x 4.36 cm) | | Weight | Approximately 2.3 lb (1 kg) | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 13.7 x 8.4 x 2.8" |
