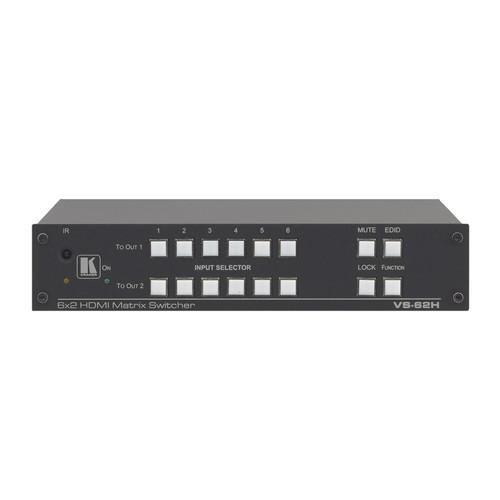

User Manual for Kramer VS-62H 6x2 4K HDMI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VS-62H 6x2 4K HDMI Matrix
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-62H 6x2 4K HDMI Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VS-62H 6x2 4K HDMI Matrix Switcher from Kramer is a high-quality, 6 inputs and 2 outputs matrix switcher for HDMI signals. It reclocks and equalizes the signals and can route any HDMI input to either or both HDMI outputs simultaneously. The VS-62H can be used in conference rooms, educational and hospitality applications. - Data rate up to 8.91Gbps data rate (2.97Gbps per graphics channel)
- Up to 4K (Ultra HD) and WUXGA resolutions
- 3D, Deep Color, x.v.Color, Lip Sync , ARC, HEAC pass−through, Dolby TrueHD, Dolby Digital Plus, DTS−HD, and 7.1 multi−channel audio HDMI support
- EDID capture copies and stores the EDID from a display device
- Programmable Step-In Functionality: When used in conjunction with compatible step−in devices, such as the SID−X3N (using an HDMI cable that supports HEC, the HDMI Ethernet Channel)
- True video clock detection
- Auto switching option for either or both outputs, last-connected or priority switching
- Non-volatile EDID storage
- Kramer reKlocking & Equalization Technology rebuilds the digital signal to travel longer distances
- Lock button prevents tampering with the front panel
- Internal pattern generator
- Kramer Protocol 3000 support
- Embedded web pages provide remote configuration and operation
- Static or dynamic DHCP IP addressing
- Flexible Control Options: Front panel buttons, IR remote (included), optional external remote IR receiver, RS−232, Ethernet, contact closure, embedded Web server
- USB port for upgrading firmware
- Half width of 1RU space rackmountable
In the Box Kramer VS-62H 6x2 4K HDMI Matrix Switcher Power Adapter IR Transmitter Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-62H 6x2 4K HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-62H Specs | Inputs | 6 x HDMI | | Outputs | 2 x HDMI | | Ports | 1 x RJ45, Ethernet
1 x 3.5 mm phone jack, IR
12 x remote selection contact−closure switches on 13 terminal block pins
1 x 3-pin terminal block, serial port
1 x mini USB, Program | | Maximum Data Rate | 8.91 Gbps data rate (2.97 Gbps per graphic channel) | | Compliance | HDMI and HDCP | | Resolution | Up to WUXGA, 4K x 2K | | Baud Rate | 9600, 115200 bps | | Supported Web Browsers | Windows 7: Google Chrome v25, FireFox v15, Opera v12, Microsoft Internet Explorer v9
Windows XP: Google Chrome v25, FireFox v15
Apple Mac: Google Chrome v25, FireFox v20, Opera v12.14, Safari v6 | | Power Consumption | 5 VDC, 880 mA | | Controls | Front panel buttons, infrared remote control transmitter, RS-232, Ethernet, remote input selection switches | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90% RHL, non-condensing | | Dimensions | 8.46 x 6.54 x 1.73" (21.5 x 16.6 x 4.4 cm) | | Weight | Approx. 2.2 lb (1 kg) | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 13.7 x 8.4 x 3.1" |
