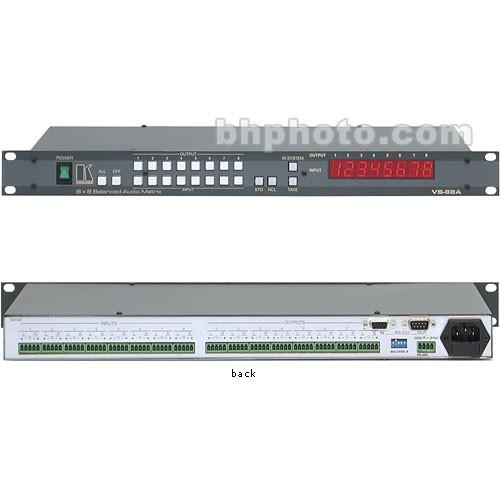

User Manual for Kramer VS-88A Audio Distribution Amplifier - 8x8, Balanced Stereo Audio, RS-232 485, Rackmountable Click to enlarge the picture
Contents of the user manual for the Kramer VS-88A Audio Distribution Amplifier -
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-88A Audio Distribution Amplifier - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Comprehensive/Kramer VS-88A is a balanced stereo audio distribution amplifier. It features matrix capabilities, memory presets, and will match up to other switchers with video switching functionality. It is housed in a rugged metal case, and is meant for studio rack mount use. - High Quality Balanced Stereo Audio
- At over 85 dB signal to noise ratio and two balanced audio channels per output, this unit passes a very clean stereo signal for critical applications.
- Presets
- Fifteen memory preset locations are provided for fast access to regularly used routing configurations.
- Remote Capabilites
- Remote operation can be accessed via RS-232 or RS-485.
- Compatibilty
- This unit works stand-alone, or in combination with other Kramer digital and analog video switchers, such as the VS-88V.
- Rackmountable
- This device was designed to fit into standard studio rack spaces.
In the Box Kramer VS-88A Audio Distribution Amplifier - 8x8, Balanced Stereo Audio, RS-232/485, Rackmountable Power Cord 3-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-88A Audio Distribution Amplifier - 8x8, Balanced Stereo Audio, RS-232 485, Rackmountable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-88A Specs | Input | Balanced stereo audio x8, +4 dBm @ 33K ohms
On terminal block connectors
RS-232, on a 9-Pin connector
RS-485, on a terminal block connector | | Output | Balanced stereo audio x8, +4 dBm @ 50 ohms
On terminal block connectors | | Coupling | Not Specified by Manufacturer | | Audio Bandwidth | 100 kHz | | Signal to Noise Ratio | 84 dB | | Audio THD | Less than 0.025% | | Audio Control | Front Panel and Remote:
Input/Output Configuration
Preset Storage and Recall | | Dimensions | 19 x 7 x 1.75"
48.26 x 17.78 x 4.45cm | | Weight | 7.8 lbs
3.5 kg | | Power Source | 85-264 VAC @ 47-440 Hz | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 21.4 x 11.0 x 4.3" |
