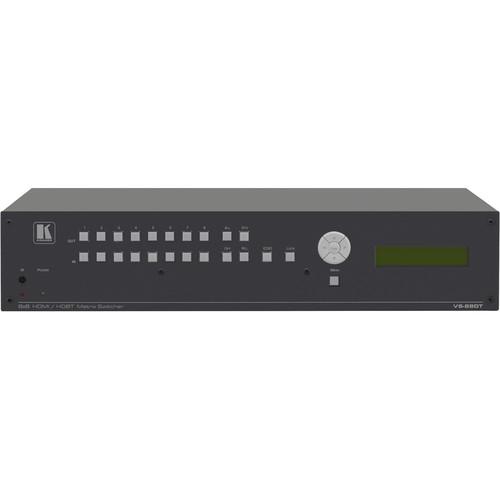

User Manual for Kramer VS-88DT 8x8 HDMI to HDMI HDBaseT Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VS-88DT 8x8 HDMI to HDMI
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-88DT 8x8 HDMI to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The VS-88DT 8x8 HDMI to HDMI/HDBaseT Matrix Switcher from Kramer is a matrix switcher for HDMI, HDBaseT, and IR signals. The unit accepts up to eight HDMI and IR inputs, and routes any or all to any or all of the eight HDMI/HDBaseT and IR outputs for connection to compatible receivers, such as the TP-580RXR (sold separately). The unit is suitable for conference room presentations, rental, staging, and advertising applications. - Maximum data rate of 6.75 Gb/s
- HDTV compatible, HDCP compliant
- EDID capture copies and stores the EDID from a display device
- Non-volatile memory stores and recalls preset matrix configurations
- Automatic output shutdown if no input signal is detected after a configurable idle period
- LCD display with two lines, twenty characters for easy configuration and operation
- Kramer Protocol 3000 support
- Lock button to prevent unwanted tampering with the settings
- Flexible control options with an embedded web server, RS-232, included IR remote, and software application
In the Box Kramer VS-88DT 8x8 HDMI to HDMI/HDBaseT Matrix Switcher Set of Rack Ears IR Remote Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-88DT 8x8 HDMI to HDMI HDBaseT Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-88DT Specs | Maximum Data Rate | 6.75 Gb/s (2.25 Gb/s per graphic channel) | | Audio Support | Up to 7.1 channels @ 192 kHz | | System Range | Up to 427' / 130 m (when using BC−HDKat6a cables) | | Connectors | 8 x HDMI input
9 x 3.5 mm Mini phone jack, infrared input
1 x 9-Pin Sub-D, RS-232 input
1 x RJ45, Ethernet input
1 x Mini USB, program input
8 x HDMI output
8 x RJ45, HDBaseT output
9 x 3.5 mm Mini phone jack, infrared output
1 x AC power jack input | | HDMI Support | 3D, Deep Color, x.v.Color, Lip Sync, Dolby TrueHD, Dolby Digital Plus, DTS−HD, and 7.1 multi−channel audio | | Control Options | Embedded web server, RS−232, IR remote (included), software application | | Temperature | Operating: 32° to 104°F / 0° to 40°C
Storage: -40° to 158°F / -40° to 70°C | | Humidity | 10 - 90% RHL, non-condensing | | Power Supply | 100 - 240 VAC, worldwide | | Dimensions | 19.0 x 13.9 x 3.5" / 48.3 x 35.4 x 8.9 cm (Rack-mountable) | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 6.2 lb | | Box Dimensions (LxWxH) | 21.0 x 19.0 x 8.0" |
