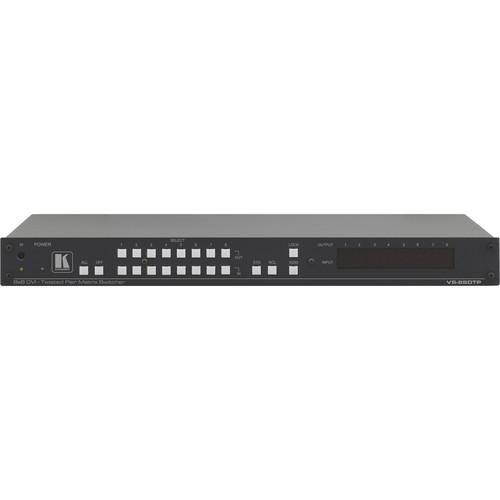

Product description The Kramer VS-88DTP 8 x 8 DVI Matrix Switcher with Twisted Pair Outputs is a high-performance matrix switcher for DVI signals. The unit re-clocks and equalizes the signal and can route any or all inputs to any or all DGKat twisted pair outputs simultaneously. - Maximum Data Rate: 4.95 Gbps (1.65 Gbps per graphic channel)
- DGKat Signal Integration: Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables 1
Please Note: Kramer DGKat cables designed specifically for optimum performance are strongly recommended. close - Kramer Equalization & re-Klocking Technology: Rebuilds the digital signal integrity to travel longer distances
- I-EDIDPro Kramer Intelligent EDID Processing: Intelligent EDID handling & processing algorithm ensures Plug and Play operation for DVI systems
- System Range
Up to 295' (90 m) at 1080i or up to 98' (30 m) at 1080p on shielded BC-DGKat524 cable
Up to 295' (90 m) at 1080i or up to 230' (70 m) at 1080p on shielded BC-DGKat623 cable
Up to 330' (100 m) at 1080i or up to 295' (90 m) at 1080p on shielded BC-DGKat7a23 cable - Cable: Requires STP (shielded twisted pair) cable 2
Please Note: Note1: For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623, or BC-DGKat7a23 cables.
Note2: The transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground. close - Flexible Control Options: Front panel, IR remote control transmitter (included), RS-232 (K-Router Windows-based software is included), RS-485, and Ethernet (Windows-based Ethernet configuration manager & virtual serial port manager is included)
- Output Disconnect: Each output
- Memory Locations: Stores multiple switches as presets to be recalled and executed when needed
- Worldwide power supply: 100 to 240 VAC
- Standard 19" (48.26 cm) ear rack mount size (1U); rack ears included
- Application
Conference room presentations
Advertising
Rental and staging In the Box Kramer VS-88DTP 8 x 8 DVI Matrix Switcher with Twisted Pair Outputs Power Cord Windows-Based Kramer Control Software Windows-Based Ethernet Configuration Manager & Virtual Serial Port Manager Kramer RC-IR3 IR Remote Control Transmitter (Batteries Included) Rack Ears User Manual 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-88DTP 8 x 8 DVI Matrix Switcher with Twisted Pair Outputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-88DTP Specs | Input | 8 DVI-D on DVI-I Molex 24-pin (female) connectors (non-HDCP compliant)
1.2 Vpp: DDC signal 5 Vpp (TTL) | | Output | 8 DGKat twisted pair on RJ-45 connectors | | Bandwidth | 4.95 Gbps (1.65 Gbps per graphic channel) | | Standards | Supports DVI 1.1 | | Maximum Resolution | Up to UXGA: 1080p, 1920 x 1200 | | Power Consumption | 100 to 240 VAC, 50/60 Hz, 43 VA | | Controls | Front panel buttons, IR remote control transmitter, RS-232, RS-485, & Ethernet | | Rack Height | 2U | | Dimensions | W x D: 19 x 7" (48.26 x 17.78 cm) | | Weight | 5.5 lb (2.5 kg) |
