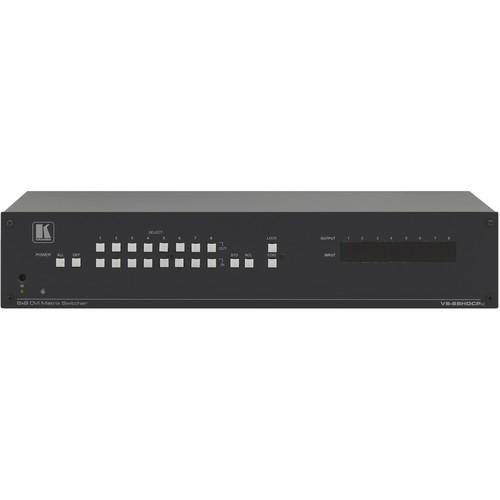

User Manual for Kramer VS-88HDCPXL 8 x 8 HDCP Compliant DVI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VS-88HDCPXL 8 x 8 HDCP
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-88HDCPXL 8 x 8 HDCP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer VS-88HDCPXL 8 x 8 HDCP Compliant DVI Matrix Switcher is a high-performance matrix switcher for DVI and HDMI signals on a DVI-D connector. It re-clocks and equalizes the signal and can route any input to any or all outputs simultaneously. - Maximum Data Rate
- 6.75 Gbps (2.25 Gbps per graphic channel)
- HDMI Support
- Deep Color, x.v.Color, 3D pass-through, HDMI compressed audio channels
- EDID PassThru
- Passes EDID signals from source to display
- Output Disconnect
- Each output
- Memory Locations
- Stores multiple switches as presets to be recalled and executed when needed
- Flexible Control Options
- Front panel, IR remote, RS-232 (K-Router Windows-based software is included), and Ethernet (Windows-based Ethernet Configuration Manager & Virtual Serial Port Manager is included)
- Worldwide Power Supply
- 100 to 240 VAC
- Standard 19" (482.6mm) Rack Mount Size
- 1U rack ears included
- Applications
- Conference room presentations, advertising, rental, and staging
In the Box Kramer VS-88HDCPXL 8 x 8 HDCP Compliant DVI Matrix Switcher Power Cord IR Remote Control Transmitter Quick Start Guide User Manual Rack Ears 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-88HDCPXL 8 x 8 HDCP Compliant DVI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-88HDCPXL Specs | Inputs | 8 HDMI connectors | | Outputs | 8 HDMI connectors | | Bandwidth | 6.75 Gbps (2.25 Gbps per graphic channel) | | Compliant Standards | Supports DVI and HDCP | | Resolution | Up to UXGA, 1080p | | Power Consumption | 100 to 240 VAC, 50 / 60 Hz, 33 VA | | Controls | Front panel buttons, infrared remote control transmitter, RS-232, Ethernet | | Dimensions | W x D: 19 x 7" (482.6 x 177.8 mm)
H: 1U
(rack mountable) | | Weight | Approximately 5.5 lb (2.5 kg) | | | | Package Weight | 8.7 lb | | Box Dimensions (LxWxH) | 21.575 x 13.15 x 6.299" |
