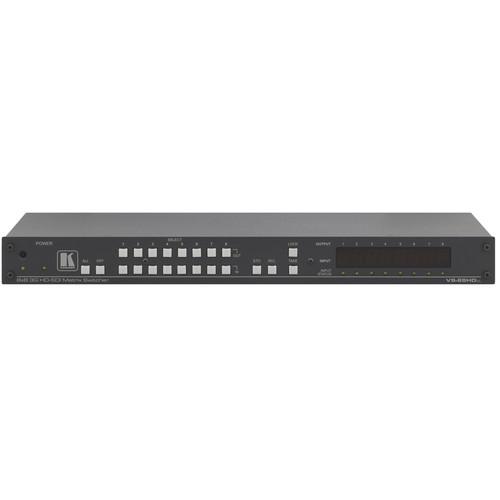

User Manual for Kramer VS-88HDXL 8 x 8 3G HD-SDI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VS-88HDXL 8 x 8 3G
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-88HDXL 8 x 8 3G contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer VS-88HDXL 8 x 8 3G HD-SDI Matrix Switcher is a high performance matrix switcher for 3G HD-SDI and HD-SDI dual link video signals. The unit can switch any or all inputs to any or all outputs. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources. - Multi-Standard Operation
- SDI (SMPTE 259M & SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M), and dual link HD-SDI (SMPTE 372M)
- Analog Sync Type
- Bi-level, tri-level
- Take Button
- Executes multiple switches all at once
- Multiple Memory Locations
- Stores multiple switches as presets (salvos) to be recalled and executed when needed
- Vertical Interval Switching
- Synchronizes either to external reference or the incoming video in compliance with SMPTE RP-168
- Flexible Control Options
- Front panel, RS-232 (K-Router Windows-based software is included), RS-485, Ethernet, contact closure, & IR remote (included)
- Worldwide Power Supply
- 100 to 240 VAC
- Standard 19" (482.6mm) Rack Mount Size
- 1U rack ears included
- Applications
- Professional broadcasting, production studios, and presentation applications
In the Box Kramer VS-88HDXL 8 x 8 3G HD-SDI Matrix Switcher Power Cord IR Remote Control Transmitter K-Router Windows-Based Software 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-88HDXL 8 x 8 3G HD-SDI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-88HDXL Specs | Inputs | 8 SMPTE-259M, 344M, 292M, 372M, 424M serial video, 75 Ω on BNC connectors | | Outputs | 8 equalized and re-clocked SMPTE-259M, 344M, 292M, 424M, 372M (dual link) outputs 75 Ω on BNC connectors | | Maximum Output Level | 800 m Vpp / 75 Ω | | Data Rate | Up to 2.97 Gbps | | Controls | Front-panel, RS-232, RS-485, Ethernet, remote infrared | | Indicators | 8-character display on the front panel | | Power Consumption | Universal, 100 to 240 VAC, 50 / 60 Hz, 24 VA | | Dimensions | W x D: 19 x 7" (482.6 x 177.8 mm)
Height: 1U
(rack mountable) | | Weight | Approximately 5.7 lb (2.6 kg) | | | | Box Dimensions (LxWxH) | 43.64 x 23.72 x 4.36" |
