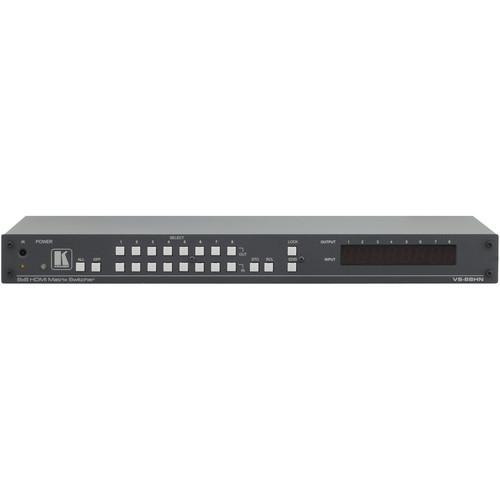

User Manual for Kramer VS-88HN 8 x 8 HDMI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Kramer VS-88HN 8 x 8 HDMI
- Product category: Routers & Switchers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Routers & Switchers
|
User manual for the Kramer VS-88HN 8 x 8 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer VS-88HN 8 x 8 HDMI Matrix Switcher is a high quality 8 x 8 matrix switcher for HDMI signals. It re-clocks and equalizes the signal and can route any input to any or all outputs simultaneously.You can control this switcher using the front panel buttons or remotely via RS-232 serial commands transmitted by a PC, touch screen system, or other serial controller, the Kramer infrared remote control transmitter, A PC connected to the Ethernet port on the device via a LAN, or an external remote IR receiver (sold separately).This switcher is well-suited for conference room presentations, advertising, as well as rental and staging applications. - Up to 6.75 Gb/s data rate (2.25 Gb/s per graphics channel)
- Suitable for resolutions up to UXGA at 60 Hz and for all HD resolutions
- HDMI support for Deep Color, x.v.Color, Dolby TrueHD, Dolby Digital Plus, DTS−HD, and linear PCM 7.1 surround sound
- I-EDIDPro Kramer Intelligent EDID Processing -Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems
- Kramer reKlocking & Equalization Technology that rebuilds the digital signal to travel long distances
- A lock button to prevent unwanted tampering with the buttons on the front panel
- 16 preset memory locations for quick access to common configurations
In the Box Kramer VS-88HN 8 x 8 HDMI Matrix Switcher Power Cord Set of Rack Ears 4 x Rubber Feet RC-IR3 Infrared Remote Controller Batteries Limited 7-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VS-88HN 8 x 8 HDMI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VS-88HN Specs | Inputs | 8 x HDMI connectors | | Outputs | 8 x HDMI connectors | | Maximum Data Rate | 6.75 Gb/s data rate (2.25 Gb/s per graphics channel) | | Standards Compliance | HDMI and HDCP | | Resolution | Up to UXGA; 1080p | | Power Consumption | 100 to 240 VAC, 50 / 60 Hz, 40 VA | | Control | Front panel buttons, infrared remote control transmitter, RS-232, Ethernet | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions (W x D x H) | 19.00 x 7.00" (48.26 x 17.78 cm) Height: 1U | | Weight | 4.60 lb (2.09 kg) approximately | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 21.654 x 13.307 x 4.331" |
