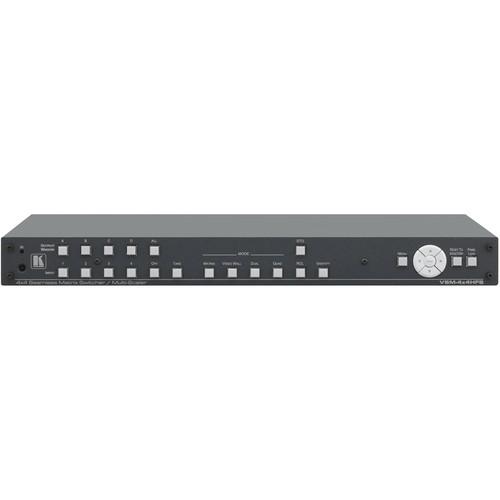

Product description The 1 RU VSM-4x4HFS 4x4 Seamless Matrix Switcher/Multi-Scaler from Kramer can be used as a 4x4 matrix switcher, as well as a 2x2 video wall driver and dual/quad multi-viewer. The unit allows switching between video inputs with a clean frame-to-frame cut, without glitches or transition time. The VSM-4x4HFS supports HDMI Deep Color resolutions with up to eight channels of audio, and includes per-port HDCP and EDID settings. - PixPerfect scaling precision pixel mapping and high-quality scaling technology
- HDTV compatible, HDCP compliant
- Four HDMI inputs and four scaled HDMI outputs
- Matrix switcher, video wall, dual display (PiP/P&P), and quad display operation modes
- Frame-to-frame video cuts with zero transition time
- Bezel correction options in video wall mode
- HDCP and EDID settings per port
- Multiple output aspect ratios
- Built-in ProcAmp, with color, hue, sharpness, noise, contrast, and brightness controls
- Flexible control options with front panel buttons, IR remote control with On−Screen Display (OSD), RS-232, and Ethernet with built-in web browser
- Quick access to common input-output configurations, and non-volatile memory settings in each operation mode
- Mini USB connector for upgrading firmware
In the Box Kramer VSM-4x4HFS 4x4 Seamless Matrix Switcher/Multi-Scaler (1 RU) Power Cord Set of Rack Ears IR Remote Control Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer VSM-4x4HFS 4x4 Seamless Matrix Switcher Multi-Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer VSM-4X4HFS Specs | Connectors | 4 x HDMI in (HDCP version 1.1)
4 x HDMI out (HDCP version 1.1)
RJ45 Ethernet
USB mini, firmware upgrade
9-pin RS-232
AC power jack | | Output Resolutions | 1080p60/50/24, 720p60/50, 576p, 480p
1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1280 x 1024, 1280 x 800, 1024 x 768 | | Temperature | Operating: 32° to 104°F / 0° to 40°C
Storage: -40° to 158°F / -40° to 70°C | | Humidity | 10 - 90%, RHL non-condensing | | Power Source | 100 - 240 VAC, 27 V max | | Dimensions | 19.0 x 7.0 x 1.8" / 48.3 x 17.8 x 4.4 cm | | Weight | 6 lb / 2.7 kg (approx.) | | | | Package Weight | 6.5 lb | | Box Dimensions (LxWxH) | 21.6 x 13.2 x 4.3" |
