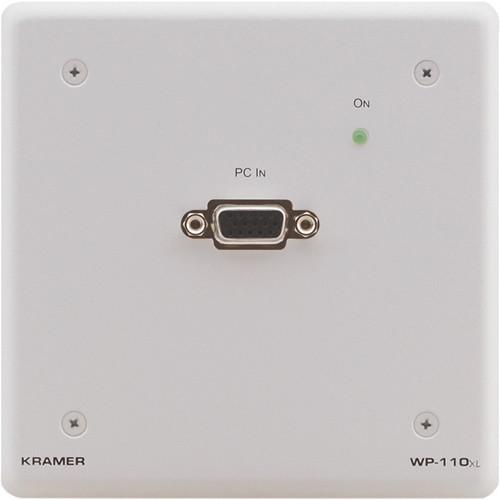

User Manual for Kramer WP-110XL Computer Video over Twisted Pair Transmitter with EDID Click to enlarge the picture
Contents of the user manual for the Kramer WP-110XL Computer Video over Twisted
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
|
User manual for the Kramer WP-110XL Computer Video over Twisted contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Electronics WP-110XL Computer Video over Twisted Pair Transmitter with EDID is an extended range wall plate transmitter for UXGA computer graphics video signals with resolutions up to WUXGA and 1080p. It converts and transmits a computer graphics video signal into a twisted pair CAT 5 type cable to a compatible Kramer receiver. This wall plate transmitter allows you to copy and store a screen capture with an EDID (Extended Display Identification Data) from a display device. - Extended Transmission Range (Up to 820')
- EDID Capture - Copies and stores the EDID from a display device
- Power Connect System - A single connection to the transmitter or the receiver powers both units when the devices are within 150' from each other
- Increased Interference Protection - Against noise, spikes, and interference in adverse environments
In the Box Kramer WP-110XL Computer Video over Twisted Pair Transmitter with EDID 12 VDC Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer WP-110XL Computer Video over Twisted Pair Transmitter with EDID in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WP-110XL Specs | Input | 15-pin VGA/UXGA HD connector | | Output | RJ-45 connector | | Video Resolution | Up to WUXGA, 1080p | | Range | Up to 820' (250 m) | | Coupling | AC | | Operating Temperature | 32° to 104° F (0° to +40° C) | | Cable Type | UTP or STP such as CAT 5 | | Power Consumption | 12 VDC, 70 mA | | Wall Plate Size | 2 gang EU/US | | Dimensions (W x D x H) | 2 gang USA: 4.49 x 1.4 x 4.49" (11.4 x 3.5 x 11.4 cm)
2 gang Europe: 5.98 x 1.4 x 3.15/3.39" (15.2 x 3.5 x 8.0/8.6 cm) | | Weight | Approx 0.31 lb (0.14 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
