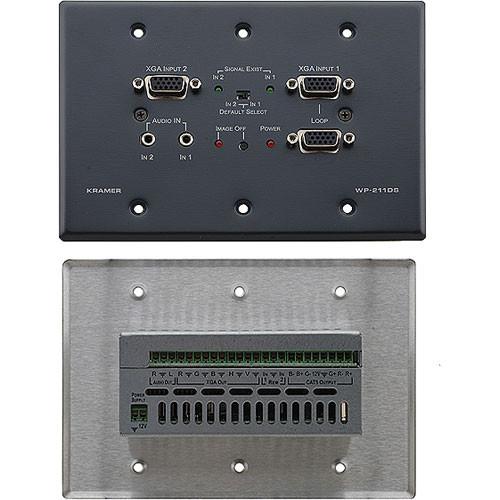

User Manual for Kramer WP-211DS 2x1 Computer Graphics & Stereo Audio Standby Switcher, Twisted Pair Transmitter & Wall Plate Click to enlarge the picture
Contents of the user manual for the Kramer WP-211DS 2x1 Computer Graphics &
- Product category: KVM Extenders Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer KVM Extenders
|
User manual for the Kramer WP-211DS 2x1 Computer Graphics & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The WP-211DS 2x1 Computer Graphics & Stereo Audio Standby Switcher, Twisted Pair Transmitter & Wall Plate from Comprehensive/Kramer is a high-performance switcher designed to manage computer-graphics video signals. It will accept resolutions ranging from VGA through UXGA and higher, as well as unbalanced stereo audio signals. It outputs computer-graphics signals, unbalanced stereo, and twisted pair signals.
This model offers bandwidth-capacity of 300MHz (-3dB) and is HDTV compatible. An automatic standby switching features will change between secondary and primary inputs when a signal is detected. It also features a proprietary Power Connect System that allows all of the components in the system to receive power from one component's power supply (all components in the system must have this feature in order to use it). Other features include a looping input and ID-bit control. This model is designed for installation in a 3-gang electrical box. - Composite Video & Audio Switching with Twisted-Pair Output
- Use this unit to switch graphics video and audio signals, as well as output a twisted-pair signal.
- Bandwidth & Compatibility
- It supports bandwidth of up to 300MHz and is HDTV compatible.
- Power
- A proprietary power feature allows all the components in your system to receive power from the power supply of just one component.
- Quality Controls
- Multiple control options are available to manage the quality of signal integrity.
- Installation
- Its three-gang wall-plate design is intended for installation in an electrical box.
In the Box Kramer WP-211DS 2x1 Computer Graphics & Stereo Audio Standby Switcher, Twisted Pair Transmitter & Wall Plate Wall-Plate Switcher Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer WP-211DS 2x1 Computer Graphics & Stereo Audio Standby Switcher, Twisted Pair Transmitter & Wall Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WP-211DS-GRAY Specs | | | Ports | Transmitter:
1 x Terminal Block Video (Output)
1 x HD15 VGA (Output)
1 x Terminal Block Audio (Output)
1 x Terminal Block Ethernet (Output)
2 x HD15 VGA Female (Input)
2 x 3.5 mm Audio (Input) | | | | Bandwidth | 260 MHz (Video)
20 kHz (Audio) | | Crosstalk | -59 dB at 100 MHz (Video) | | Signal Level | 1 Vp-p (Video) | | Signal-to-Noise Ratio | 74 dB (Video)
80 dB (Audio) | | | | DC Input Power | 12 VDC at 0.33 A | | | | Material of Construction | Metal | | Weight | 0.7 lb / 303.9 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 11.9 x 5.7 x 5.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
