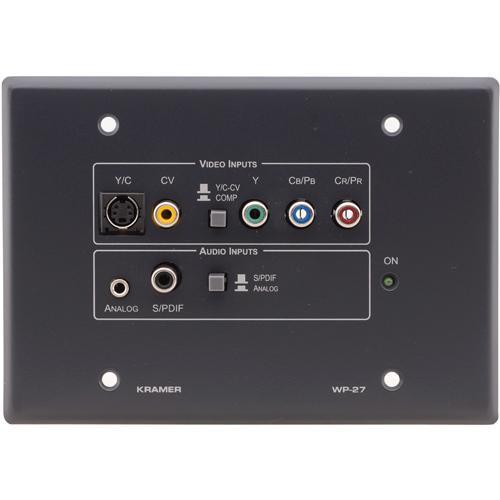

Product description The Kramer WP-27 Active Wall Plate (Gray) is a 2 gang twisted pair transmitter for composite video, S-video, component video, and unbalanced stereo or S/PDIF audio signals, with a range of up to 100m (330 feet). The transmitter converts a single audio and video input into a twisted pair signal. The WP-27 features the Power Connect system which allows only one unit in a system (transmitter or the receiver) to be connected to a power source in order to function. - Audio/Video Switching
- Video switching with the WP-27 consists of either CV and component video or S-video and component. Audio switching happens between unbalanced stereo and S/PDIF audio
- Power Connect System
- The Power Connect System allows the entire system to run with only the transmitter or the receiver connected to a power source
- Cable
- UTP (unshielded twisted pair) or STP (shielded twisted pair)
In the Box Kramer WP-27 Active Wall Plate (Gray) WP-27 Active Wall Plate Power Supply 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer WP-27 Active Wall Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WP-27-GRAY Specs | Input | 1 x S-video (Y/C) 1Vpp/75 Ohm, 0.3Vpp/75 Ohm (C) on a 4-pin connector
1 x composite video (CV) 1Vpp/75 Ohm on an RCA connector
1 x component 1Vpp/75 Ohm (Y, Pb, Pr) on 3 RCA connectors
1 x S/PDIF (digital audio) on an RCA connector
1 x Audio Analog on a 3.5mm mini jack | | Output | 1 x RJ-45 CAT 5 shielded connector (CAT 5 out) | | Resolution | Up to UXGA, up to 1080p | | Controls | Video input selector button
Audio input selector button | | Bandwidth | -3dB
Audio: 20-20kHz @ 0.5dB | | Signal to Noise Ratio | Audio: <-80dB | | Gain | Audio: analog/analog: 0dB
Analog/SPDIF: -12dBFS | | Coupling | AC | | Power Source | 12VDC, 200mA | | Dimensions | 4.7 x 0.98 x 2.95" (12 x 2.5 x 7.5cm) | | Weight | 0.67 lbs (0.3kg) |
