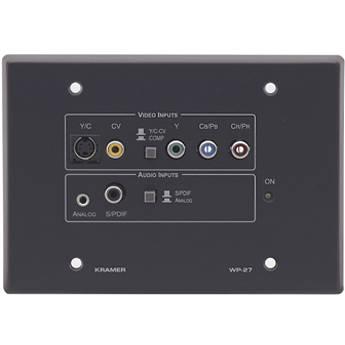

Product description The WP-27-WHITE Active Wall Plate Composite, S-Video, Component Video & Audio Transmitter (White) from Kramer is twisted pair transmitter for composite video, S-video, or component video and unbalanced stereo or S/PDIF audio signals. It converts a single audio and video input into a twisted pair signal. The WP-28 receiver then converts the signals back into the original formats. - Switch between either CV and component video or between S-video and component
- Switch between unbalanced stereo and S/PDIF audio
- Only one unit in a system, either the transmitter or the receiver, needs to be connected to a power source
- It has a system range up to 330' (100m)
- It can be used with UTP (unshielded twisted pair) or STP (shielded twisted pair), such as CAT-5
- It offers a three-gang, wall-plate size
In the Box Kramer WP-27-WHITE Active Wall Plate Composite, S-Video, Component Video & Audio Transmitter (White) Power Supply Seven-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer WP-27-WHITE Active Wall Plate Composite, S-Video, Component Video & Audio Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WP-27-WHITE Specs | Inputs | (1) S-video (Y/C) 1Vpp/75 Ohms (Y), 0.3Vpp/75 Ohms (C) on a 4-pin connector
(1) composite video (CV) 1Vpp/75 Ohms on an RCA connector
(1) component 1Vpp/75 Ohms (Y,Pb,Pr) on 3 RCA connectors
(1) S/PDIF (digital audio) on an RCA connector
(1) audio Analog on a 3.5mm mini jack | | Outputs | (1) RJ-45 CAT-5 shielded connector | | Resolution | Up to UXGA, up to 1080p | | Control | Video input selector button, audio input selector button | | Bandwidth | Audio:
20 to 20KHz @ 0.5dB | | Signal-to-Noise Ratio | Audio:
<-80dB | | Gain | Audio:
analog/analog: 0dB
analog/SPDIF: -12dBFS | | Coupling | AC | | Power | 12VDC, 200mA | | Dimensions (HxWxD) | 0.98 x 4.7 x 2.95" (2.5 x 12 x 7.5cm) | | Weight | 0.67 lbs (0.3kg) |
