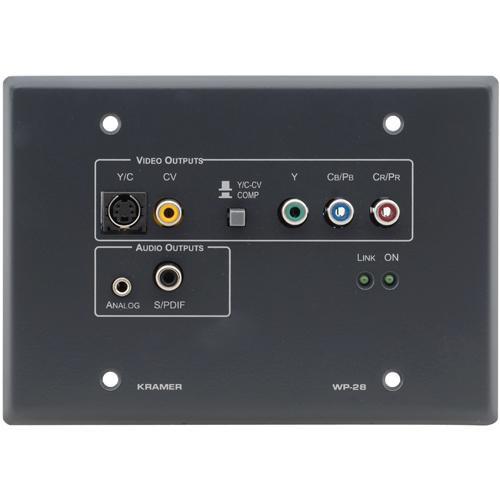

Product description Designed for use in multimedia rooms, the Kramer WP-28 Active Wall Plate (Gray) is a dual gang twisted pair receiver for composite video, S-video, component video, and unbalanced stereo or S/PDIF audio signals. This wall plate converts a single audio and video input back into the original audio and video formats. Video switching is between the CV and component video or between S-video and component. Audio switching is between unbalanced stereo and S/PDIF audio. The WP-28 also utilizes the Power Connect System which enables the entire system to work with only one unit, either the transmitter or the receiver, connected to a power source. - System Range
- Works up to 330 feet (100m)
- Controls
- Level (Gain) and EQ (Peaking)
- Audio Switching
- Between unbalanced stereo and S/PDIF audio
- Video Switching
- Between CV and component video or between S-video and component
- Compatible Cables
- Unshielded twisted pair (UTP) or shielded twisted pair (STP) as in CAT 5
- Power Connect System
- Only the transmitter or the receiver needs to be connected to an external power source for the system to operate
In the Box Kramer WP-28 Active Wall Plate (Gray) WP-28 Active Wall Plate Power Supply 7-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer WP-28 Active Wall Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WP-28-GRAY Specs | Input | 1 x RJ-45 CAT 5 shielded connector (CAT 5 in) | | Outputs | 1 x S-video (Y/C) 1Vpp/75 Ohms (Y), 0.3Vpp/75 Ohms (C) on a 4p connector
1 x composite video (CV) 1Vpp/75 Ohms on an RCA connector
1 x component video 1Vpp/75 Ohms (Y, Pb, Pr) on 3 RCA connectors
1 x S/PDIF (digital audio) on an RCA connector
1 x audio analog on a 3.5mm mini jack | | Maximum Output Level | Video: 1V
Audio: 2.5V | | Resolution | Up to UXGA, up to 1080p | | Bandwidth | -3dB
Audio: 20Hz-20kHz @ 0.5dB | | Signal to Noise Ratio | Audio: <-80dB | | Gain | Analog/analog: 0dB
Analog/SPDIF: -12dBFS | | Coupling | AC | | Power Source | 12VDC, 300mA | | Dimensions | 4.7 x 0.98 x 2.95" (12 x 2.5 x 7.5cm) | | Weight | 0.67 lbs (0.3kg) |
