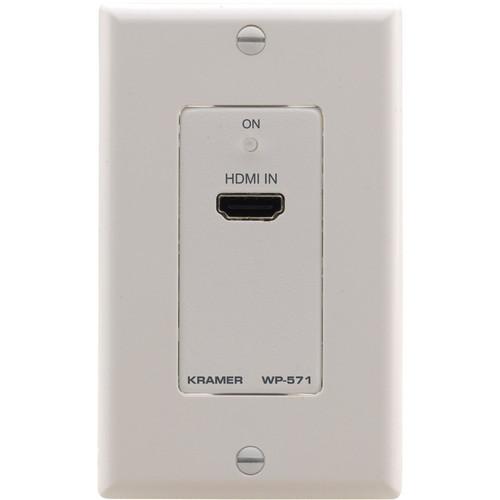

User Manual for Kramer WP-571 Active 1-Gang Wall Plate HDMI over Twisted Pair Transmitter Click to enlarge the picture
Contents of the user manual for the Kramer WP-571 Active 1-Gang Wall Plate
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
|
User manual for the Kramer WP-571 Active 1-Gang Wall Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The white WP-571 Active 1-Gang Wall Plate HDMI over Twisted Pair Transmitter from Kramer is a DGKat twisted pair transmitter for HDMI signals. The WP-571 converts an HDMI signal to a twisted pair signal and transmits it to a WP-572 (not included), which converts the twisted pair signal back to an HDMI signal. The transmitter supports a maximum data rate of up to 4.95 Gb/s. DGKat twisted technology converts TMDS as well as control and communication to signals that run over twisted pair cables. EDID PassThru passes EDID signals between the source and display. A single connection to the transmitter powers the receiver. - Maximum data rate of up to 4.9 Gb/s (1.65 Gb/s per graphic channel)
- DGKat Signal Integration technology converts TMDS as well as control and communication to signals that run over twisted pair cables
- HDMI Support - HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD
- System Range:
Up to 295' (90m) at 1080i, or up to 98' (30m) at 1080p on shielded BC-DGKat524 cable
Up to 295' (90m) at 1080i, or up to 230' (70m) at 1080p on shielded BC-DGKat623 cable
Up to 330' (100m) at 1080i or up to 295' (90m) at 1080p on shielded BC-DGKat7a23 cable. - Requires shielded twisted pair (STP) cable 1
Please Note: Transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer Cat 5, Cat 6, and Cat 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground. close - EDID PassThru passes EDID signals between the source and display
- ON LED - Lights red when receiving power only, orange when either input or output and power are attached, and green when both an active input and output are attached
- Single connection to the transmitter powers the receiver
- Used in board, conference, and training rooms, presentation systems, signal distribution, and home theater
In the Box Kramer WP-571 Active 1-Gang Wall Plate HDMI over Twisted Pair Transmitter (White) 12 VDC Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer WP-571 Active 1-Gang Wall Plate HDMI over Twisted Pair Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WP-571(W) Specs | Inputs | 1 x HDMI connector | | Outputs | 1 x RJ45 twisted pair, DGKat | | Bandwidth | Up to 4.95 Gb/s data rate (1.65 Gb/s per graphics channel). | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Power Consumption | US: 12 VDC, 190 mA (single device); 360 mA total (when one device supplies the power to both devices) | | Dimensions | 1.30 x 1.42 x 4.10" (3.3 x 3.6 x 10.4 cm) | | Weight | 0.18 lb (0.08 kg) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.5 x 4.9 x 3.6" |
