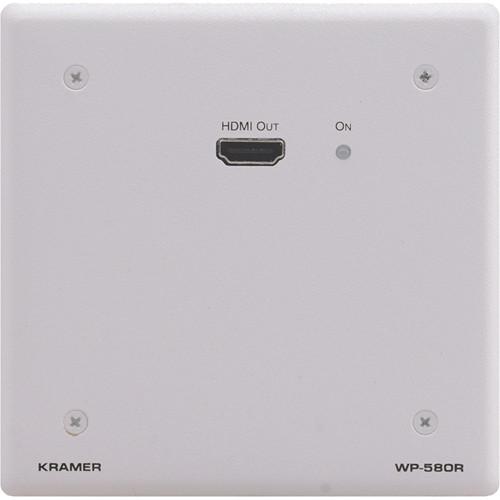

User Manual for Kramer WP-580R HDBaseT Technology Twisted Pair Receiver for HDMI Signals Click to enlarge the picture
Contents of the user manual for the Kramer WP-580R HDBaseT Technology Twisted Pair
- Product category: Video Extenders & Repeaters Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Video Extenders & Repeaters
|
User manual for the Kramer WP-580R HDBaseT Technology Twisted Pair contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|
Product description The Kramer Electronics WP-580R HDBaseT Technology Twisted Pair Receiver for HDMI Signals converts the twisted pair signal back into an HDMI signal.
The WP-580T (sold separately) and the WP-580R can form a transmission and reception system either together or each device separately with another certified HDBaseT device. For example, the transmitter and receiver system can be composed of the WP-580T that connects to the Kramer TP-580R to form a transmitter receiver pair. - Bandwidth of up to 3.4 Gb/s
- Range of up to 230' (70m) at 1080p @ 60Hz @ 36bpp, using Kramer BC−DGKat623 cables (sold separately)
- HDTV compatibility and HDCP compliance
- HDMI Support: HDMI (deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS−HD, CEC, 2k, 4k, 3D)
- EDID Pass-Through: Passes EDID signals from the source to the display
- LED status indicators for power
- Wall plate size of 2 gang EU/US
In the Box Kramer WP-580R HDBaseT Technology Twisted Pair Receiver for HDMI Signals Power Supply Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer WP-580R HDBaseT Technology Twisted Pair Receiver for HDMI Signals in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer WP-580R Specs | Inputs | 1x RJ-45 connector | | Outputs | 1x HDMI connector | | Bandwidth | Supports up to 3.4 Gb/s bandwidth per graphic channel | | Compliance With HDMI Standard | Supports HDMI and HDCP | | Power Source | 5 VDC, 930 mA | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 10 to 90%, RHL non-condensing | | Dimensions | 4.49 x 1.02 x 4.49" (11.40 x 2.60 x 11.40 cm) 2 gang for the USA | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.2 x 5.5 x 3.9" |
