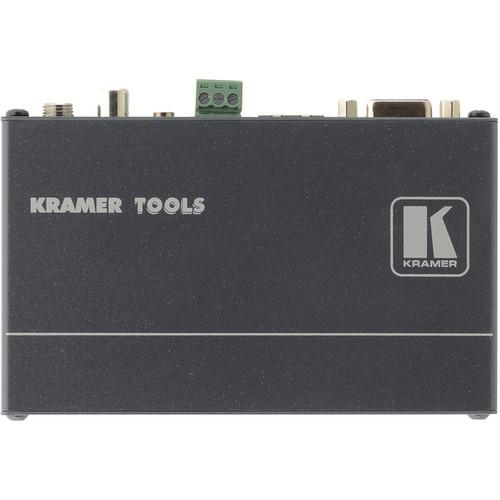

Product description The Kramer XGA Video/Stereo Audio/Bidirectional RS-232 over Twisted Pair Receiver receives computer graphic signals up to WUXGA & 1080p, unbalanced stereo audio, and bidirectional RS-232 data signals via a twisted pair cable. When used with the TP-125-od twisted pair transmitter, the receiver provides an extension of up to 300’ (91.44m).
Featuring level (gain) and EQ (peaking) controls, the XGA Video/Stereo Audio/Bidirectional RS-232 over Twisted Pair Receiver converts twisted pair signals back into a computer graphics video signal without any loss in the signal over the entire transmission length. It simultaneously provides unbalanced stereo and S/PDIF (24-bit 48kHz) audio output, and supports bidirectional RS-232 signaling with a maximum bitrate of 19.2kbps which is sent over the video signal. Featuring horizontal and vertical polarity adjustment, the XGA Video/Stereo Audio/Bidirectional RS-232 over Twisted Pair Receiver offers improved display compatibility at the output.
The XGA Video/Stereo Audio/Bidirectional RS-232 over Twisted Pair Receiver requires a 12V DC power supply (included) for operation. Power Connect System allows both the transmitter and the receiver to be powered with a single connection when the units are within 150’ (50m) of each other. Via EMP protection, it offers protection against voltage surges induced by electromagnetic field of a nearby lightning strike. However, it does not protect against direct lightning strikes. In addition, 3 units can be mounted side-by-side in 1U rack space with the optional RK-3T rack adaptor. - Receives computer graphic signals up to WUXGA & 1080p, unbalanced stereo audio, and bidirectional RS-232 data signals via a twisted pair cable
- Transmission distance - up to 300' (91.44m)

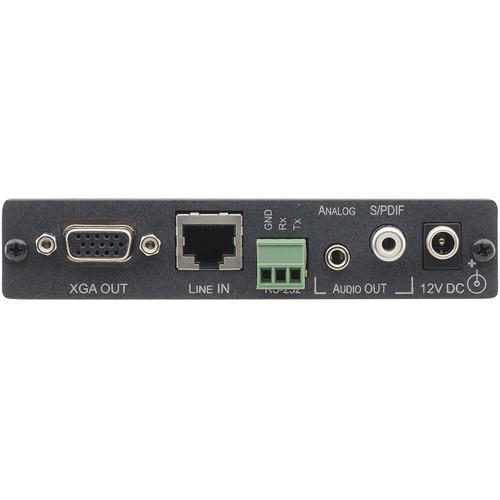

- Twisted Pair Input - RJ-45

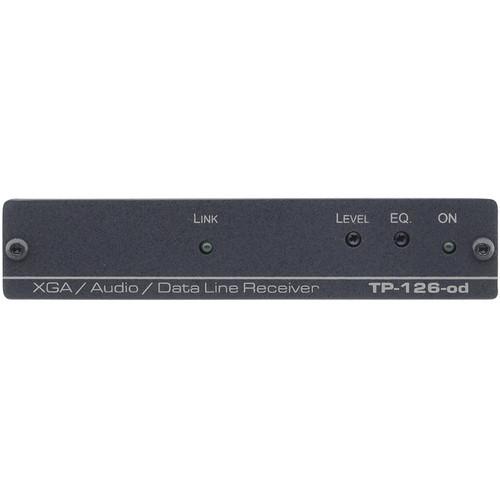

- Level (gain) and EQ (peaking) controls
- Converts twisted pair signals back into a computer graphics video signal without any loss in the signal over the entire transmission length
- Simultaneous unbalanced stereo and S/PDIF (24-bit 48kHz) audio output
- Bidirectional RS-232 signaling - with a maximum bitrate of 19.2kbps which is sent over the video signal
- Horizontal and vertical polarity adjustment
- Requires a 12V DC power supply (included) for operation
- Power Connect System - allows both the transmitter and the receiver to be powered with a single connection when the units are within 150' (50m) of each other
- EMP Protection - offers protection against voltage surges induced by electromagnetic field of a nearby lightning strike (does not protect against direct lightning strikes)
- 3 units can be mounted side-by-side in 1U rack space with the optional RK-3T rack adaptor
In the Box Kramer XGA Video/Stereo Audio/Bidirectional RS-232 over Twisted Pair Receiver Power Supply 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer XGA Video Stereo Audio Bidirectional RS-232 over Twisted Pair Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKramer TP-126-OD Specs | Input | 1 RJ-45 LINE IN connector | | Output | Video: 1 UXGA on a 15-pin HD connector
Audio: 1 S/PDIF on an RCA connector, 1 audio analog on a 3.5mm mini jack | | Maximum Output Level | Video: 1.6V
Audio: 2.3V | | Controls | Level:-7.5dB to +4.4dB
EQ.: 0dB to +33dBm (130m) @50MHz | | RS-232 Baud Rate | Up to 19200kbps | | RS-232 Mode | Full-duplex | | Bandwidth | Audio: 20 to 20kHz @0.5dB | | S/N Ratio | Audio: less than -80dB | | Total Gain | Audio: Analog/analog: 0dB | | Analog/SPDIF | -12dBFS | | Coupling | AC | | THD + N | Audio: less than 0.01% | | Power Source | 12V DC, 60mA | | Dimensions (WxDxH) | 4.76 x 2.83 x 0.95" (12.1 x 7.18 x 2.42 cm) | | Weight | 0.67 lb (0.3 kg) |
