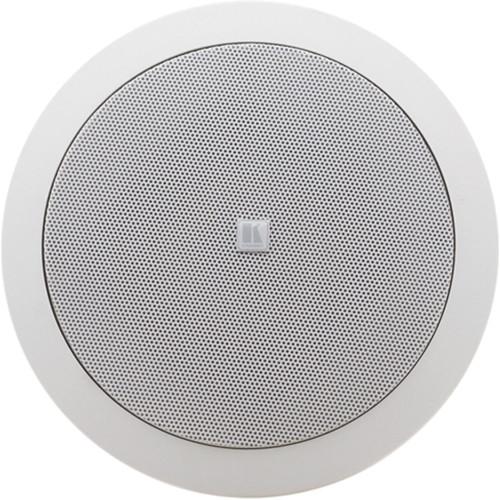

User Manual for Kramer Yarden 4-C 4" 2-Way Closed-Back Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the Kramer Yarden 4-C 4" 2-Way Closed-Back
- Product category: Installed Speakers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Installed Speakers
 |
User manual for the Kramer Yarden 4-C 4" 2-Way Closed-Back contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

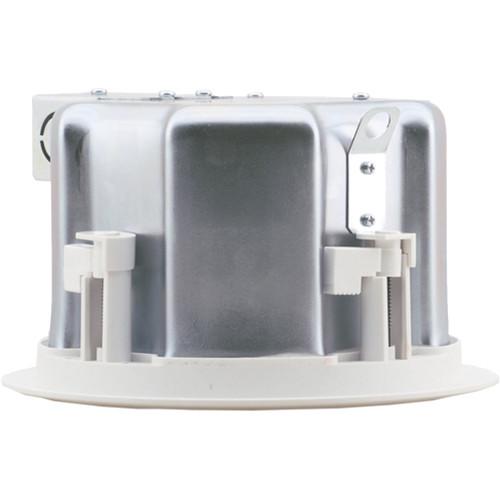

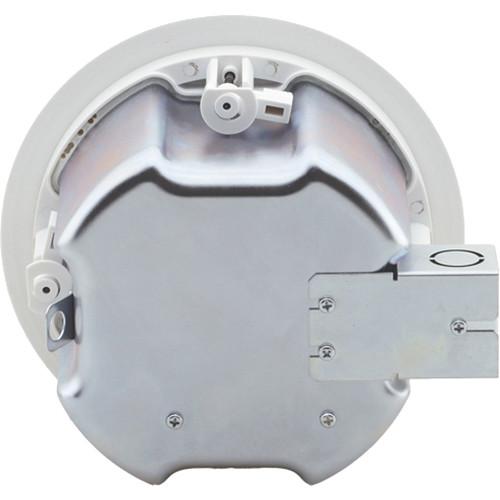

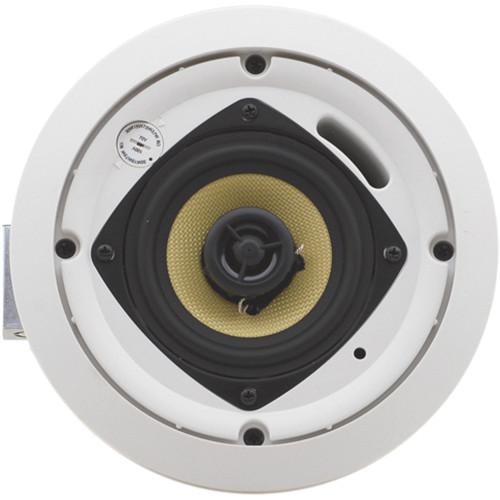

Product description The pair of white Yarden 4-C Closed−Back Ceiling Speakers from Kramer is a compact 2-way, 4" coaxial ceiling speaker set, which features a Kevlar woofer and a 0.5" Mylar dome tweeter with a multi−tap power transformer. The speakers have a frequency response of 100 Hz to 20 kHz @ ±3 dB, and will handle up to 30 watts, RMS.
The Yarden 4-C features a 2nd level cross-over design, and the user has the option of selecting between 8Ω usage (bypassing the transformer) and 70V/100V power settings, which are suitable for an array installation. The package includes: 2 speakers (1 pair), and accessories, including a ceiling mounting kit, a template, and the user manual. - Can be used in conference rooms, boardrooms, classrooms, clubs, hotels, and restaurants
- UL 1480 and UL 2043 approved
- Ships with ceiling mounting kit
- Selection between 8Ω usage (bypassing the transformer) and 70V/100V power settings
- Suitable for array installations
In the Box Kramer Yarden 4-C 4" 2-Way Closed-Back Ceiling Speaker (Pair, White) Installation Bracket Ceiling Mounting Kit (complete) Safety Cord Attached to Grille Cutout Template Quick-start Guide Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Yarden 4-C 4" 2-Way Closed-Back Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer Yarden 4-C 4" 2-Way Closed-Back Ceiling Speaker can be downloaded in PDF format at the link stated below.
Technical parametersKramer YARDEN 4-C(W) Specs | Speaker Type | 2-Way, coaxial, closed-back ceiling speaker | | Woofer | 4" (103 mm) polypropylene with rubber surround | | Tweeter | 0.5" (13 mm) Mylar dome | | Frequency Response | 100 Hz to 20 kHz @ ±3 dB, 85 Hz to 20 kHz @ −10 dB | | Sensitivity | 85 dB SPL, 1 W @ 1 m | | Maximum SPL | Continuous: 95 dB, peak: 97 dB | | Impedance | 8 ohms (transformer tap in off position) | | Transformer Taps | 70 V: 30 W /15 W /7.5 W / 3.7 W / Off (Lo−Z)
100 V : 30 W / 15 W / 7.5 W / Off (Lo−Z) | | Power Handling | 30, 80 W continuous program | | Crossover Frequency | 6 kHz | | Coverage Angle | 90° | | Directivity Factor | 4.2 averaged 1 kHz to 10 kHz | | Directivity Index | 6.2 dB averaged 1 kHz to 10 kHz | | Input Connector | Terminal block | | Material of Construction | ABS bezel, aluminum grill, metal back can | | Operating Temperature | 32 to 104°F (0 to +40°C) | | Storage Temperature | −40 to 158°F (−40 to +70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Dimensions (Diam. x Depth) | 7.68 x 4.2" (19.5 x 10.7 cm ) external x mounting depth | | Cutout Diameter | 6.57" (16.7 cm) | | Speaker Weight | 3.9 lg (1.75 kg) (approximate, single speaker) |
