User Manual for Kramer Yarden 5-O 5.25" 2-Way On-Wall Speakers Click to enlarge the picture
Contents of the user manual for the Kramer Yarden 5-O 5.25" 2-Way On-Wall
- Product category: Installed Speakers Kramer
- Brand: Kramer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kramer Installed Speakers
 |
User manual for the Kramer Yarden 5-O 5.25" 2-Way On-Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kramer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kramer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kramer product will considerably shorten its lifespan!
|

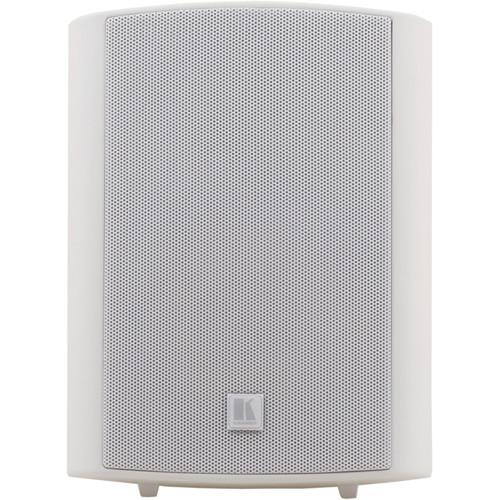

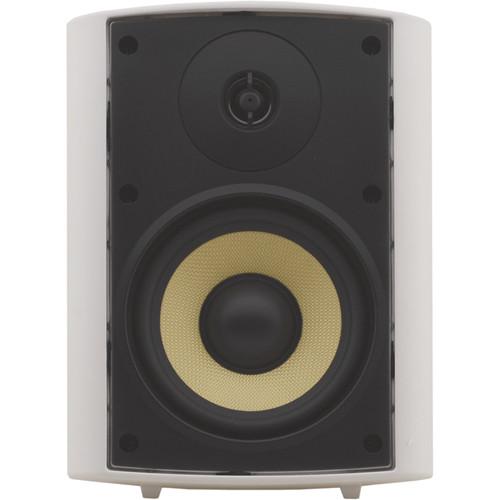

Product description The pair of white Yarden 5-O 5.25", 2-Way On-Wall Speakers from Kramer is a set of on-wall speaker cabinets that feature a 5.25" Kevlar cone woofer and 0.5" Mylar tweeter. The speakers reproduce a frequency response of 100 Hz to 20 kHz @ ±3 dB and each speaker handles up to 80W continuous program.

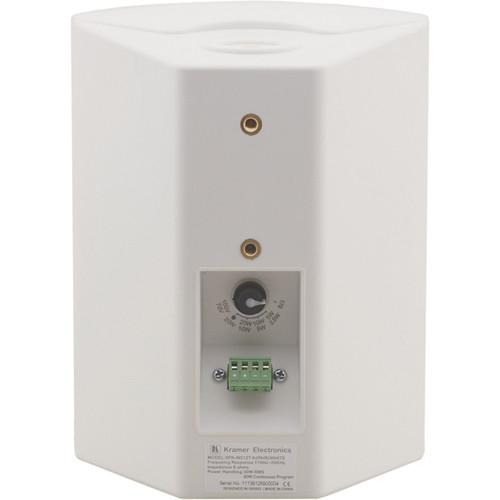

The Yarden 5−O on−wall compact speaker features 2nd level cross−over design and multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. - For conference rooms, boardrooms, classrooms, hotels, and restaurants
In the Box Kramer Yarden 5-O 5.25" 2-Way On-Wall Speakers (Pair, White) 2 x Mounting Brackets Mounting Hardware Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Yarden 5-O 5.25" 2-Way On-Wall Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer Yarden 5-O 5.25" 2-Way On-Wall Speakers can be downloaded in PDF format at the link stated below.
Technical parametersKramer YARDEN 5-O(W) Specs | Speaker Type | 2-Way, on-wall | | Woofer | 5.25" (133 mm) Kevlar with rubber surround | | Tweeter | 0.5" (13 mm) Mylar | | Frequency Response | 100 Hz to 20 kHz @ ±3 dB, 80 Hz to 20 kHz @ −10 dB | | Sensitivity | 88 dB SPL, 1 W @1 m | | Maximum SPL | Continuous:101 dB, peak: 104 dB | | Impedance | 8 ohms (transformer tap in off position) | | Power Handling | 30 W RMS, 80 W continuous program | | Transformer Taps | 70 V: 20 W /10 W /5 W /Off (Lo−Z)
100 V: 20 W /10 W /5 W / Off (Lo−Z) | | Crossover Frequency | 9 kHz | | Directivity Factor | 4 averaged 1 kHz to 10 kHz | | Directivity Index | 6 dB averaged 1 kHz to 10 kHz | | Input Connector | Terminal blocks | | Material of Construction | Frame, aluminum grill, steel brackets and ABS cabinet | | Operating Temperature | 32° to 104°F (0° to +40°C) | | Storage Temperature | −40° to 158°F (−40° to +70°C) | | Humidity | 10% to 90%, RHL non−condensing | | Installation Clearance | Front Panel to Wall (with Mounting Bracket): 7.4" (18.7 cm)
Back Panel to Wall (with Mounting Bracket): 0.9" (2.4 cm) | | Dimensions (W x D x H) | 7.24 x 6.6 x 9.65" (18.4 x 16.7 x 24.5 cm )
7.24 x 7.5 x 9.65" (18.4 x 19.0 x 24.5 cm) (with mounting brackets) | | Speaker Weight | 4.7 lb (2.15 kg) (approximate, single speaker)
5.1 lb (2.3kg) (with mounting kit) |
