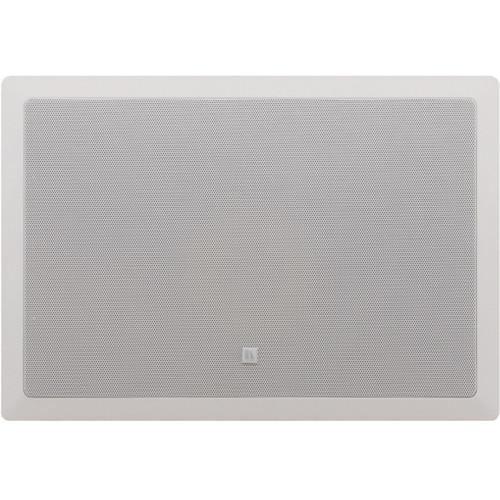

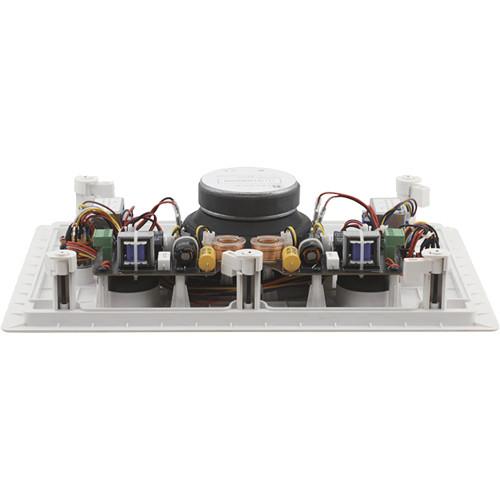

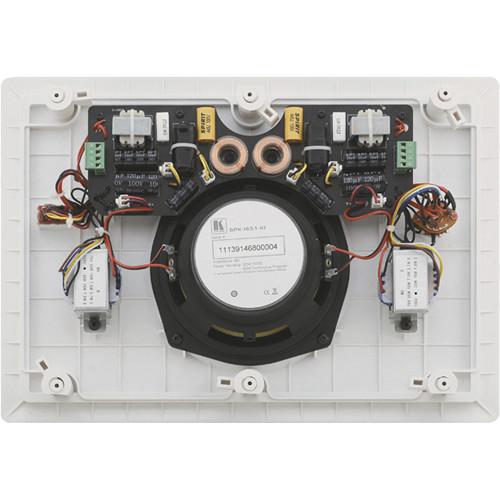

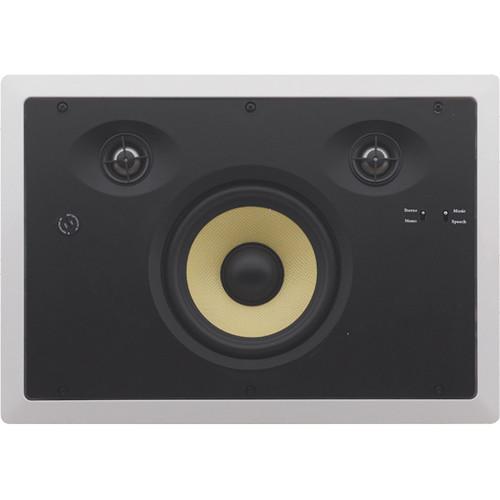

Product description The white Yarden 6−ID High Performance 2-Way In−Wall Stereo Speaker from Kramer is an open-back speaker, which features a 6.5" Kevlar woofer and dual pivoting 1" titanium tweeters for mono or possible stereo utilization. It includes a speech mode to improve intelligibility, a 2nd level cross−over design, and a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. The speaker has a power handling capability of 30W RMS / 80W continuous program and a frequency response of 60 Hz to 20 kHz @ ±3 dB.
Additionally, the speaker includes both Mono/Stereo and Music/Speech select switches, which give the user listening options dependent upon the speaker's assigned usage. The speaker is suitable for use in conference rooms, boardrooms, classrooms, hotels, clubs and restaurants. - Dual pivoting 1" titanium tweeters for stereo or mono usage
- Multi-tap transformer or 8 ohm use
- Speech/Music and Stereo/Mono selector switches
In the Box Kramer Yarden 6-ID High Performance 2-Way In−Wall Stereo Speaker (White) Cutout Template Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Kramer Yarden 6-ID High Performance 2-Way In−Wall Stereo Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Kramer Yarden 6-ID High Performance 2-Way In−Wall Stereo Speaker can be downloaded in PDF format at the link stated below.
Technical parametersKramer YARDEN 6-ID(W) Specs | Speaker Type | 2−way open−back in-wall speaker | | Woofer | 6.5" (16.5 cm) Kevlar with rubber surround | | Tweeter | 2 x 1" (25 mm) pivoting titanium | | Frequency Response | 40 Hz to 20 kHz @ −10 dB, 60 Hz to 20 kHz @ ±3 dB | | Impedance | 8 ohms (transformer tap in off position) | | Sensitivity | 85 dB SPL, 1 W @ 1m | | Transformer Taps | 70 V - 30 W/15 W /7.5 W /3.7 W /Off (Lo−Z), 100 V - 30 W /15 W /7.5 W /Off (Lo−Z) | | Power Handling | 30 W RMS, 80 W continuous program | | Crossover Frequency | 2.3 kHz | | Directivity Factor | 7.5 averaged 1 kHz to 10 kHz | | Directivity Index | 8.8 dB averaged 1 kHz to 10 kHz | | Input Connector | Terminal blocks | | Controls | Mono/Stereo select switch, Music/Speech select switch | | Material of Construction | Frame, aluminum grill, ABS cabinet | | Operating Temperature | 32 to 104°F (0 to +40°C) | | Storage Temperature | -40 to 158°F (-40° to +70°C) | | Humidity | 10 to 90%, RHL non−condensing | | Installation Clearance | 3.27" (8.3 cm) Mounting depth | | Dimensions (W x D x H) | 18.9 x 11.02 x 3.46" (48 x 28 x 8.8cm) | | Speaker Weight | 6.68 lb (3.03 kg) (approximate) |
